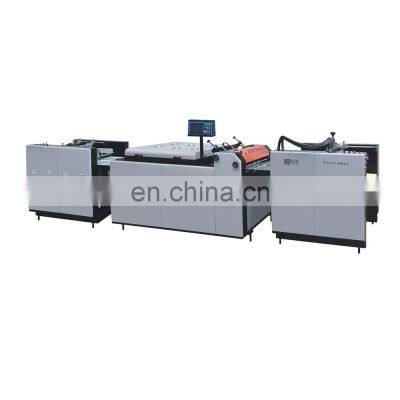

SGUV-740A UV Coating Machine for Photo Paper

Product Description

Product Description
Product OverviewSGUV-740A automatic uv coating machine·SGUV-740A UV automatic coating machine has experienced technical upgrades based on the origina three-roller coating machine.With frequency coversion control adopted for metering roll,oiling volumes for papers of different thickness can be controlled through different linear veldt,straightforward and easy to operate,and it achieves fundermental changes in the surface fineness and smoothness of coating products without orange peel veins ba and large,thus optimizin polishing products.FEATURES AT A GLANCE1. High speed & high precision2. Using UV oil & water oil3. Easy to operate4. With CE certificate5. Both UV & IR lamp6. Intelligently Computerized7. CustomizedPRODUCT SPECIFICATIONSNoItemData1ModelSGUV-660ASGUV-740A2Max paper size620*760mm740*890mm4Min paper size270*270mm270*270mm5Paper weight80-500g/m280-500g/m26Laminating speed0-40m/min0-40m/min7UV lamp1pcs*6.5kw1pcs*6.5kw8IR lamp3pcs*1.2kw3pcs*1.2kw9Total weight1500kg2800kg10Overall dimension 6000*1250*1600mm6000*1450*1600mmProduct Configuration·With automatic feeder and the stacker.·This UV Coating Machine is equipped with UV curing and IR drying device.·Digital frequency converter speed control. And independent conveyor driven.·Larger diameter coating rollers makes the coating effect smoother & brighter.·Full coverage splash guards to protect from splashing.·Used vacuum airbed for maximum hold down the paper sheets on conveying.·UV magnetic leakage transformer with parallel capacitor design can better endure the voltage fluctuating impact.·Two level UV lamp power setting.·Easy access UV lamp chamber and replacement.·High velocity blower fan for cooling and exhaust.·Safety locker on all machine doors and covers.·Full coverage protection against UV radiation around the UV lamp chamber.·Lower temperature control on the UV lamp chamber surface.·Emergency stop switches at arms length throughout the machine .·Interlocks design prevents against misoperation.Company ProfileWhy Choose Us?1. With 12 years' Manufacturing Experience2. Having ISO 9001-Certified Factory3. Strong R&D capability4. High Quality Guaranteed5. First Class Service And Best PricesLaminating MachineCoating MachineFolder gluerFlute Laminating MachineRigid Box MachinePaper Tube MachineVertical Laminating MachineDie Cutting MachineHot Stamping MachineFAQQ1: What it is advantage of your products?A1: Easily operation and simply maintenance. Also coat effective in market.Q2: How long for the guarantee?A2: 12 month free warranty.Q3: The engineer is available for overseas services?A3: Yes, we supply engineer who is good at communication and understand English.Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.Q5: What is the brands for the electrical system?A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.Q6: Which level of your products in market?A6: High and mid grade quality with nice price.Q7: Where are you?A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.Q8: Will you supply for OEM or ODM orders?A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.Contact with Us
