Slb4000c8 320-360t/H Total Installed Power 730kw Asphalt Mixing Plant

Product Description

Slb4000c8 320-360t/H Total Installed Power 730kw Asphalt Mixing Plant
Advantages:

· Mixing blades are arranged spirally, and can achieve axial major cycle, tangential minor cycle and middle turbulence mixing, Increasing the efficiency by 20%
· Optimal L/D ratio design, with large opening discharge gate, shortening mixing time and discharge time Accurate weighing technology (SLB2000 &3000 &4000C8)

· Applying "large and small gate discharging", "pulsating vibration" and "multi-speed" aggregate weighing, achieving rough and accurate measurement, and aggregate weighing error smaller than 20kg

· Frequency conversion and two-times weighing applied on asphalt weighing, achieving asphalt/aggregate ratio bias smaller than 0.1

· Power weighing controlled by frequency conversion screw conveyor, reducing weighing error to 1kg Dust-free main tower, smoke direct combustion (SLB2000 &3000 &4000C8)

· Dust-free main tower: cart replaced by flap door distribute technology; fully enclosed tower without dust leaking; multiple negative pressure vacuumin

· Smoke direct combustion: 100% captured and pyrolysed, no secondary pollution Intelligent production technology (SLB2000 &3000 &4000C8)

· Intelligent production: 1-button startup and shutdown; aggregate self-adaptive adjustment; auto temperature control; weight-free calibration; equipment health managemen

· Intelligent management system: achieving digitization in whole process of purchase-production-sale
Product Parameters

Model	SLB4000C8
Rated productivity	360t/h
Cold aggregate silo	6×13m3
Feeding width	3.6m
Drying drum	2.75m×12m
Drying drum driving power	4×30kW
Light/heavy oil burner	28MW
Induced draft fan	185kW
Airflow	105000Nm3/h
Dedusting and filtering area	1200m2
Hot aggregate hoist	37kW
Vibrating screen	6ZF2070/57
Hot aggregate silo	65m3
Rated mixing capacity	4500kg/ batch
Mixing body power	2×55kW
Mixed material silo volume	100t/ bottom type
New powder tank	50m3
Recycled powder tank	50m3
Diesel tank	30000L
Asphalt tank	4×50000L
Heavy fuel tank	2×30000L
Receiving and discharging groove	1m3
Fuel-type eat-conducting oil furnace	80×104Kcal/h
Total installed power	≈729kW

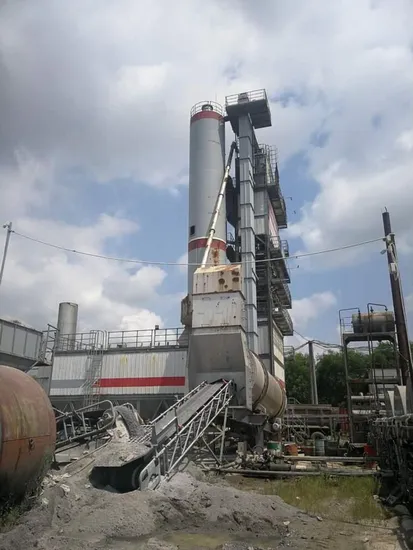

Detailed Photos
