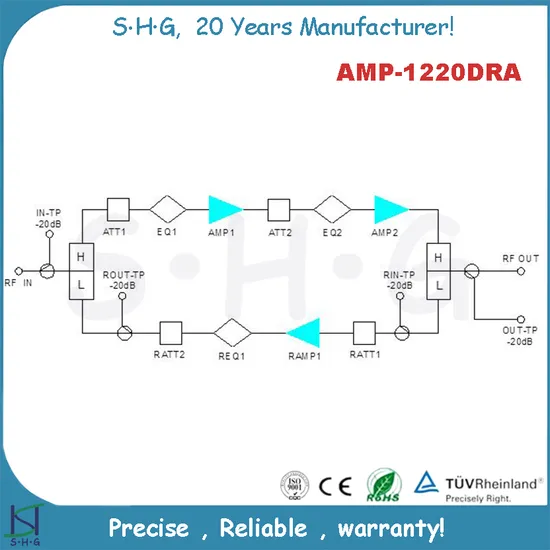

1.2GHz CATV Bi-Directional Amplifier

Product Description

SHG AMP-1220DRA CATV bi-directional amplifier is a kind of high-performance two-way amplifier, operation bandwidth to 1.2G, supporting DOCSIS 3.1 system. It adopts GaAs amplification module, to improve the machine's performance index greatly. Pluggable frequency division module, can provide multiple frequency division type. The unified equalization and attenuation inserts are convenient to user debugging and operating. With good upstream and downstream channels' isolation, it applies to large HFC network, to ensure the stability of system in the whole network.
Features 1> 1.2G bandwidth, supporting DOCSIS 3.1 2> Good distortion index 3> Good heat dissipating and waterproof function 4> -20~+55ºC wide range of operation temperature 5> 6KV port surge protection 6> 10A port over-current capacity 7> The unified type equalization and attenuation insert 8> Pluggable output distribution
Specification

Items	Units	Parameters
Outer dimension	mm	260×200×120
Weight	kg	2.2
Operation temperature	ºC	-40~+55
Storage temperature	ºC	-40~+80
Humidity range		5%~95%
Power voltage	Vac	33-80/90-240 50/60Hz
Power consumption	W	≤25
RF connector		F-female Imperial
Anti-lightning intensity(10/700us)	Kv	>6

The forward path performance parameters

Items	Units	Parameters
Frequency range	MHz	54/87/102/258-1220
Gain	dB	38
In-flatness	dB	≤±1.2(Typical: ≤±1.0dB)
Accuracy of testing port	dB	-20±1.0
Return loss	dB	≤-16dB(Typ.)≤-14(Max.)
Output level	dBuV	96/110@102/1218MHz
Equalization range	dB	0-18 1dB step
Attenuation range	dB	0-20 1dB step
Noise factor	dB	≤8
CTB	dB	≤-70 Note1
CSO	dB	≤-70 Note1
HUM	dBc	<-65
Group delay	nesc	≤35 @3.58MHz Span

Note1: 72 NTSC + 111 QAM (-6dB offset),110dBuV/ch virtual output at 1218MHz @14dB tilt
The return path performance parameters

Items	Units	Parameters
Frequency range	MHz	5-42/65/85/204
Gain	dB	24
In-flatness	dB	≤±0.75
Accuracy of testing port	dB	-20±1.0
Return loss	dB	≤-16
Output level	dBuV	106@42\65\85MHz
Input attenuation range	dB	0-20 1dB step
Output equalization range	dB	0-18 1dB step
Output attenuation range	dB	0-20 1dB step
Noise factor	dB	≤8
DTO On7&25MHz	dB	≤-70 Note2
DSO On6&32MHz	dB	≤-60 Note2
HUM	dBc	<-75
Group delay	nesc	≤35 @1MHz Span

Note2:13&19MHz two channels, 106dBuV flatness output, one port testing (according to ANSI/SCTE1152011).
