Ue/460 Pet Injection Molding Machine Pet
| US$1.00-2.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UE/460
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
200/Y
Product Description
PET IMM:PET professional barrel and screw, increased motor,

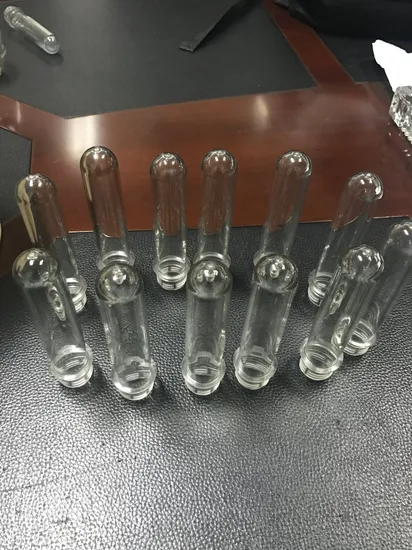

Mainly produces PET bottle and PET material plastic products
Parameters:
| PET STYLE SPECIFICATION | UE/460 | ||||
| SCREW TYPE | A | B | C | D | |
| Injection Unit | |||||
| Screw diameter | mm | 75 | 80 | 85 | 90 |
| Screw L/D ratio | L/D | 25 | 25 | 25 | 25 |
| Shot volume(theoretical) | CM3 | 1767 | 2010 | 2269 | 2544 |
| Injection weight(PET) | g | 2203 | 2506 | 2829 | 3172 |
| Injection rate | g/s | 488 | 555 | 626 | 701 |
| Injection pressure | MPA | 191 | 168 | 149 | 133 |
| Screw speed | rpm | 130 | |||
| Clamping Unit | |||||
| Clamping force | KN | 4600 | |||
| Open stroke | mm | 780(790) | |||
| Space between tie-bars(W*H) | mm | 780*780 | |||
| Max mould height | mm | 800 | |||
| Min mould height | mm | 250 | |||
| Ejector stroke | mm | 220 | |||
| Ejector force | KN | 110 | |||
| Others | |||||
| Max pump pressure | MPA | 16 | |||
| Pump Motor power | KW | 52 | |||
| Heating power | KW | 29.3 | |||
| Numbers of heating area | Segment | 5+1 | |||
| Machine dimension(L*W*H) | M | 8.05*2.10*2.8 | |||
| Oil tank cubage | L | 695 | |||
| Machine weight | TON | 18 | |||
Configuration List:
| Name | Brand |
| Computer | KEBA(AUSTRIA) or EST |
| Servo Drive | INOVANCE(CHINA) |
| Servo Pump | SUNNY(USA) / SUMITOMO(JAPAN) |
| Servo Motor | PHASE(ITALY) |
| Electro-hydraulic Proportion valve | HNC (Taiwan) |
| Stroke transducer | NOVO or Miran(GERMANY)/GERFRAN(ITALY) |
| Breaker | Schneider (FRANCEN)/Siemens(GERMANY) |
| Contacts | Schneider (FRANCEN)/Siemens(GERMANY) |
| Switch | Schneider (FRANCEN)/Siemens(GERMANY) |
| Hydraulic Direction Valve | Vickers (USA) or Rexroth (GERMANY) |
| Plasticing Motor | DINAMIC(ITALY) or STF(ENGLAND) |
| Hydraulic Hose | MANULI(ITALY)/CONTINENTAI(GERMANY) |
| Plasticing speed sensor | OMRON |
| Sealing ring | HALITE or TREIIEBORG(UK or GERMANY) |
