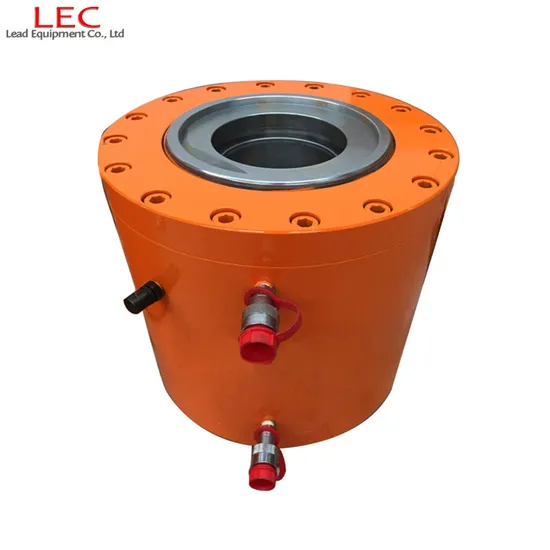

Ydc1100 Prestressed Concrete Post Tension Hydraulic Jack

Product Description

YDC1100 Prestressed Concrete Post Tension Hydraulic Jack
1. Usage: It is mached with prestressed anchorage widely used in the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering.
2. It is suitable for the tension of group anchors with 1860-2000 sizes, Φ 15.24, Φ 12.7 strands.
3. In some certain circumstance it can be used in the working of pushig, jacking and transforming and so on.
4. Easy to use with reanosable price.
5. Jack is used for prestressing works
The features of YDC Prestressed concrete hydraulic jack
YDC Feed-through jacks are the new designed products in our company, are the upgrades of the primary jacks.
Features:
1. Using the new seals, to synchronous strengthen the seal-ability under great pressure.
2. Using special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning process. So that the life of seals and sealing performance can be improved about 20%.
3. In the tensioning the operating process, jacks is easily damaged under overpressure because of the jack-based pullback clinder, so we added the overpressure valve on the jacks to pressure production. Meanwhile we improved the original of commonly used structure by wire disc and flanged disc, to make the bearing capacity for oil pressure strengthen. So that enormously reduce the possibility of mechanical damage due to improper operation.
In the word, the YDC series feed-through jacks' performance is improved, and widely used in pre-stressing and poststressing construction.
Notice: According to users' requirement, YDC through jack can be configured

Model	Tonnage	Tension force KN	Stroke mm	Central diameter mm	Dimension mm	Weight kgs	Tension area	Rated oil pressure	Number of max. Tension strands
YDC220	22	220	200	Φ32	Φ110*400	20	4398mm²	50Mpa	Φ25 rebar
YDC650	65	650	200	Φ60	Φ190*345	58	12638mm²	51Mpa	3 strands
YDC1100	110	1100	200	Φ80	Φ230*356	80	20488mm²	54Mpa	5 strands
YDC1500	150	1500	200	Φ90	Φ270*356	120	30242mm²	50Mpa	7 strands
YDC2000	200	2000	200	Φ114	Φ296*372	135	35796mm²	56Mpa	9 strands
YDC2500	250	2500	200	Φ128	Φ348*373	180	48356mm²	52Mpa	12 strands
YDC3000	300	3000	200	Φ142	Φ375*385	250	57796mm²	52Mpa	14 strands
YDC3500	350	3500	200	Φ158	Φ416*385	290	70765mm²	49Mpa	17 strands
YDC4000	400	4000	200	Φ158	Φ424*385	310	76302mm²	53Mpa	19 strands
YDC4600	460	4600	200	Φ190	Φ473*390	400	87606mm²	53Mpa	22 strands
YDC5000	500	5000	200	Φ193	Φ480*395	430	93965mm²	53Mpa	24 strands
YDC5600	560	5600	200	Φ193	Φ510*400	460	107156mm²	52Mpa	27 strands
YDC6500	650	6500	200	Φ205	Φ538*400	500	124580mm²	52Mpa	31 strands
Remark	There are available jacks in stock if tonnage is under 560 tons. It need to be customized if tonnage is over 650 tons. Standard stoke is 200mm, if there are specific requirement, it need to be customized.
