Brake Light Gasket Sealing Machine

Brake Light Gasket Sealing Machine

US$47,800.00-85,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
HGTJ
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Process
Fipfg(Foamed-in-Place Foam Gasket)
Effective Work Scope
1200mm*2200mm*190mm( Can Be Changed)
Process Speed
6-30m/Min
Strip Width
1.5-30mm
Transport Package
Plastic Pakage in Container
Specification
CE, ISO9001, SGS
Trademark
HGTJ
Origin
China
HS Code
842489
Production Capacity
200 Sets/Year

Product Description

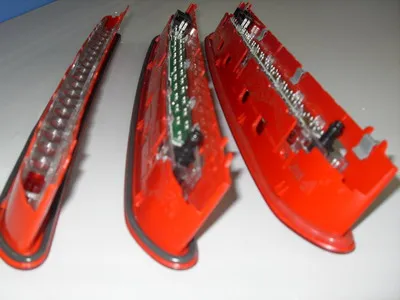

Brake light sealing machine
Brief Intruduction:
Full-automation;
Water cleaning;
Process: FIPFG(foamed-in-place foam gasket)
Mixing error: ≤ 0.3%;
Process speed: 6 ~ 30 m/ min;
Amount of output: 1-4g/s
. Strip width: 1.5-30mm
Effective work scope: 1200mm*2200mm*190mm( can be changed)
Control System: Germany Beckhoff System (It has the functions of remote monitoring and service)
Foreign after-sale service available;
Installation Instruction on customer's factory;
Certification: ISO9001: 2008, ISO9001: 2012, CE, SASO, IEC, SGS and etc...

Theory:
The foam sealing equipment, is a facility designed by our company especially to two-component liquid resin. It achieves mechanical four-axis (X, Y, Z, W)linkage through the control of industrial computer. The two-component liquid resin of Foam sealing machine mix according to a certain proportion. Then the uniform mixture of Foam sealing machine is given out along a chosen track and foams in place operated by the Foam sealing machine. The processing speed can be up to 6 ~ 30 m / min depended on process requirements. Foam sealing machine machine is widely used in cabinets, lighting, automobile and other sealing areas.
Features
Excellent sealing performance
Intelligent equipment and polyurethane materials, guarantee the product's stable quality. In any environment, it can do complete sealing. That is to say damp, dust, harmful substances can all be blocked out. The products have the features of good resistance to tensile, impact resistance, abrasion resistance, and fracture resistance, etc.
Reliable security features
Well-equipped early warning, prevention systems and environment-friendly design, provide customers an
Important guarantee for the safety and health.
Higher productivity
Sealing system explains a simple process. Its high degree of automation get high speed, efficient and convenient sealing work finished in one step without extra procedure.
Personalized service
We specialize in develop and make sealing system, supply our customers with personalized services according to their needs. We can provide after-sale service worldwide.
High degree of automation
All the procedures are controlled by the human-computer interface control part, including automatic mixing and feeding system, graphics design, glue spreading, water cleaning, automatic exhaust system. All the operating parameters, such as output, dispensing values, speed and acceleration/deceleration ramps can be monitored and controlled through extensively visualized menus.
