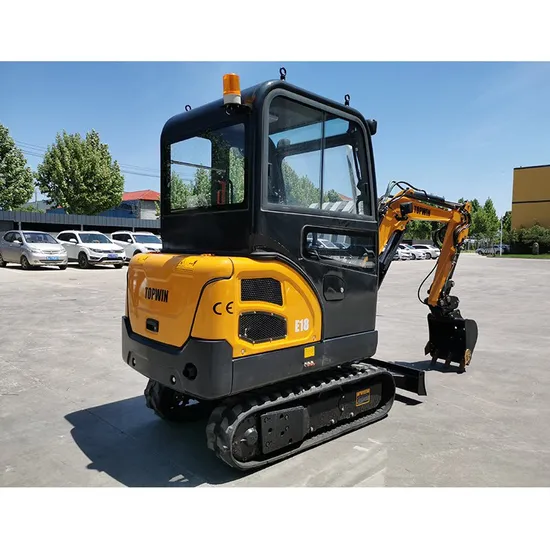

2200kg Mini Excavator/Digging Machine/Digger with Rubber Track

Product Description

Product Description

Excavator Main configs.:
China Laidong 3TE25 engine, 18.4kw, stage III
Famous brand pump
Famous brand valves
EATON brand slewing motor
EATON brand driving motor
Open cabin(Canopy)
EATON brand Hydraulic pilot servo operation system
Rubber track :230mm
With breaker pipeline system
Bucket capacity: 0.06m³
Excavator Main features: 1) High efficiency and low fuel consumption.
2) Imported hydraulic components with excellent operability, flexible action, and precise operation.
3) Adapting to various working conditions like hills and muddy areas.
4) Short turning radius, variable amplitude chassis, boom deflection, suitable for narrow space operations.
5) Multi-purpose such as: Excavation, crushing, bulldozing, drilling, grabbing.
Excavator attachments:
A tool for every job
Buckets - General Purpose Buckets - Ribbed Buckets - Ditch Maintenance Grading Buckets Buckets - Tapered Ditching Tilting Grading Bucket
Jack Hammer Or Breaking Hammer Or Breakers,
Quick Hitches,
Auger Or Earth Drill,
Thumb Bucket,
Sweeper,
Log/stone/steel Grapple,
Ripper tooth,
Rake,
Hand Held Tools,
Compactor,
Rock whee,
Extending dippers,
Hydraulic pulverizer,
Pile hammer,

Product Parameters
Excavator technical specs. :

Model	TWE10	TWE18	TWE20	TWE22
ENGINE
Emission Standard	Euro V/ Stage V	Tier 3/ Stage III	Tier 3/ Stage III	Tier 3/ Stage III
Make /Model	KOOP( KD192F-1)	LAIDONG,CHINA 3TE25	KUBOTA D1105	LAIDONG/3TE30
Power /Rotation speed	7kw/3000rpm	18.4kw(25HP)@2350rpm	14.1kw(20HP)@2000rpm	22.1kw(30HP)@2300rpm
Number of cylinder	1	3	3	3
TRACK SYSTEM
Maximum Travel speed	1.9km/h	3.5km/h	4km/h	3.5km/h
Width of track shoe	180mm	230mm	230mm	230mm
Number of track shoe per side		38 pcs	38pcs	38pcs
Number of upper roller per side	0	0	1	0
Number of bottom roller per side	2	4	3	4
PERFORMANCE PARAMETER
Standard Bucket capacity	0.023m³	0.06m³	0.07m³	0.1m³
Swing speed	13 r/min	10~12 rpm	9 rpm	12rpm
Maximum Grade ability	58%(30°)	35°	35°	30°
Maximum Bucket digging force	7.2 KN	14KN	18KN	15.3KN
Maximum Arm digging force	4.6 KN	10KN	11KN	10.5KN
Hydraulic system pressure	16MPa	18Mpa	21.5Mpa	18Mpa
Machine weight	920kg	1780kg	2000kg	2200kg
MACHINE SIZE
Overall dimension (L*W*H)	2840mm*880mm*2220mm	3865mm*1050mm*2270mm	3555mm*990mm/1300mm*2290mm	4170mm*1300mm*2280mm
Axle base/Track length on ground	1233mm	1230mm	1230mm	1230mm
Track gauge	660mm	820mm	760mm	1070mm
Minimum Ground clearance	132mm	210mm	150mm	230mm
Swing radius at tail	800mm	1125mm	650mm	1180mm
WORKING RANGE
Maximum Digging height	2600mm	3365mm	3700mm	3700mm
Maximum Dumping height	1830mm	2385mm	2440mm	2290mm
Maximum Digging depth	1715mm	2050mm	2400mm	2450mm
Maximum Vertical digging depth	1590mm	1725mm	2025mm	2160mm
Maximum Digging radius	3065mm	3860mm	4040mm	4370mm
Minimum swing radius	1480mm	1720mm	1610mm	2020mm
Maximum Lifting height of blade		230mm	240mm	240mm
Maximum Cutting depth of blade		275mm	270mm	310mm
Boom swing angle(Left/Right)		75°/45°	75°/45°	70°/50°
Shipping method	6 units in 20ftcontainer 12 units in 40ft container	4 units in 20ft container 8 units in 40ft container	4 units in 20ft container 8 units in 40ft container	2 units in 20ft container 4 units in 40ft container

Product Details
Mini excavator configurations:
Packaging & Shipping
4 units 1.8ton mini excavators in 20 feet container
8 units 1.8ton mini excavators in 40 feetcontainer
Company Profile

Shandong Topwin Machinery Co.,Ltd. (TOPWIN for short) is the one-stop solution provider for construction machinery, mining machinery, agricultural machinery and logistic machinery in China.
With more than 10 years experience in this field, TOPWIN has served various clients from USA, Canada, Mexico, Brazil, Argentina, Australia, Indonesia, Kazakhstan, Russia, Zimbabwe, Mozambique, Zambia, South Africa, etc.. We are helping our clients to succeed in every project by offering high cost-effective and reliable machines.
TOPWIN has enjoyed great reputations in road constructions, mining operations, farming, fertilizer manufacturing, etc.. That's why we get repeat purchases and more new clients from different countries and regions.
TOPWIN values high quality products and immediate response to clients' demand. We know how important it is for client to have a product that not only keeps on doing its job throughout the day, but also keeps on doing so for many years.
We offer full guidance to service and maintenance to make sure the machines are running normally with maximum productivity. To achieve that, we provide the clients with full support from day one.
