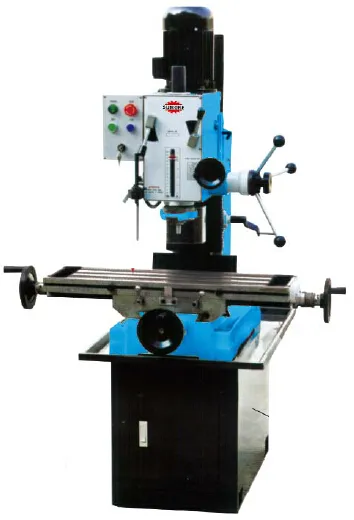

New Sumore Worktable China Vertical Fresadora Horizontal Universal Taiwan Turret Machine Milling

New Sumore Worktable China Vertical Fresadora Horizontal Universal Taiwan Turret Machine Milling

US$800.00-1,500.00 5 set (MOQ)

Basic Info.

Model NO.
SP2208-II/SP2208-III/SP2208-IV
Type
Worktable Milling Machine
Object
Gear
Structure
Desktop
Milling Cutter Type
End Mill
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE
Condition
New
Drilling Capacity
40mm/45mm
End Milling Capacity
32mm
Face Milling Capacity
80mm
Z-Axis Travel(Headstock)
450mm
X-Axis Travel(Cross)
260mm
Y-Axis Travel(Longitudinal)
130mm
Spindle Taper
Mt4 or R8
Weight(Net/Gross)
320/370kg 323/373kg
Packing Size
770X880X1160mm
Processing Material
Copper,Aluminium,Metal,Glass
Key Word
Universal Vertical Drilling and Milling Machine
Transport Package
Wooden Box
Specification
40mm/45mm
Trademark
SUMORE
Origin
China
HS Code
8459619000
Production Capacity
1000set

Product Description

Product Description
mini manual vertical milling and drilling machine price sp2208-II/SP2208-III/SP2208-IV SUMORE small milling drilling machine cheap mini torno fresadora Universal Vertical Drilling and milling machine for metal Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine
Quick detais
1.Drilling capacity:40/45mm
2.End mill capacity:32mm
3.Face milling capacity:80mm
4.Head tilt left & right:+90°
4.Spindle taper:MT3 or R8
5.Spindle speed: 80-1800rpm
7.Working tabel:800*240/1000*240mm
7.Power:1100W/1500W
Features/Advantages
Tapping Function
Brushless Motor & Variable Spindle Speed
Fine & Smooth Feeding Movement on Every Directions
High Precision for Model Engineering
Changable Table Length for Different Workpieces
Optional Table Auto Feed
Rigid cast iron construction with dovetailed slideways
Easy function change makes a versatile machine
Perfect for slotting, grooving, splines and gear cutting
Product Parameters
Model
SP2208-II
SP2208-III
SP2207-IIV
Max boring diameter
50 mm
60 mm
60mm
Drilling Capacity
32 mm
40 mm
40mm/45mm
End Milling Capacity
20 mm
32 mm
32mm
Face Milling Capacity
63 mm
80 mm
80mm
Longitudinal Axis Travel (X)
500 mm
500 mm
500 mm
Cross Axis Travel (Y)
175 mm
175 mm
175 mm
Spindle Stroke
130 mm
130 mm
130 mm
Effective Table Size
800 / 900 x 240 mm
800 / 900 x 240 mm
800 / 900 x 240 mm
Spindle Taper
MT3 / R8
MT4 / R8
MT4 / R8
Spindle Speed Range (50Hz)
80-1,250 rpm
80-1,250 rpm
80-1,250 rpm
Spindle Speed Range (60Hz)
95-1,500 rpm
95-1,500 rpm
95-1,500 rpm
Auto-feeding steps of spindle
6
6
6
Auto-feeding amounts of spindle
0.06-0.30mm/r
0.06-0.30mm/r
0.06-0.30mm/r
Automaticlly lifting of spindle (customizable)
240mm/min
240mm/min
240mm/min
Power feed attachment for table (customizable)
Stepless
Stepless
Stepless
Distance Between Spindle to Table
450 mm
450 mm
450 mm
T-slot Amount
3
3
3
Vertical Head Tilt Angle(Left / Right)
90° / 90°
90° / 90°
90° / 90°
Motor Power
750 w
1,100 w
1,100 w
Voltage and Frequency
Customrized
Customrized
Customrized
Net Weight
320 kg
320 kg
323 kg/373
Packing Size (LxWxH)
770 x 880 x 1,160 mm
770 x 880 x 1,160 mm
770 x 880 x 1,160 mm
Gross Weight
370 kg
370 kg
370 kg


Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
