4 Inch Centrifugal Irrigation Filter Superior Sand and Debris Removal for Agricultural Applications

Product Description

Product Description

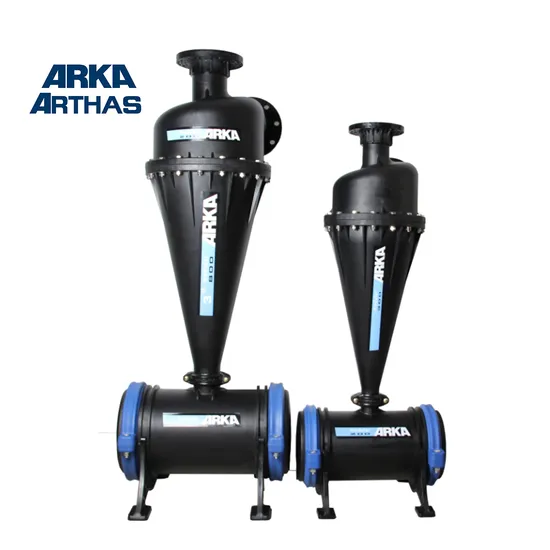

Centrifugal filter
PRODUCT DESCRIPTION

Type:	Other Watering & Irrigation	Place of Origin:	Fujian, China
Brand Name:	ARKA	Model Number:	F110LX
Material:	Plastic	Size:	1440*520*524mm
Product name:	4 inch Centrifugal Filter	Usage:	Agriculture irrigation
Function:	Centrifugal filtration water treatment	Filter Type:	Centrifugal

ARKA Model	Unit No.	Manifold	Max Flow (m3/h)	G.W. (kg)
F110LX	4''	4"-DN100	100m³/h	28

Centrifugal filter separates particles of different densities by gravity &centrifugal force principles.The filter has outstanding performance for large particles filtration.It's made by high quality material to resistant corrosion,acid,rust and alkaline,which greatly extends its lifetime.Easily dismantled sand collector at the bottom is convenient for maintenance and cleaning .
As a filter for a large particles,it can achieve excellent filtering performance working with disc filter or screen filter.The centrifugal filter is applied in agricultural irrigation,municipal garden irrigation and industrial water cycle filtration.

Typical Application
Well water filtration:the filter can quickly filtering the sand and gravels when the water is drawn from deep well by pump at the beginning.
Irrigation system:if water source comes from rivers and lakes,it is necessary to firstly use centrifugal filter to shaker out the sand and gravels as a first-stage filtration process.
Industrial filtration:For the recycled water,the centrifugal filter operates as primary filtration,works with disc filter or screen filter for multistage filtration system.

SUPPLY ABILITY: 5000 pieces per month

PACKING&DELIVERY

Packaging Details:	Carton
Port:	Fuzhou

FEATURE & ADVANTAGE
1.Manufactured in polypropylene
2.Resistance to hemical products, wear-resistant
3.Chip built-in controller to collect water pressure data, achieve unmanned automatic perform
4.Continuous filtering for water supply during back flush
5.Smart back flush auto-procedure setting by the discrepancy of water pressure between inlet&outlet
6.Manual setting for the back flush procedure regulary
7.Efficient water saving in auto-flushing with minimum pressure 2.8 bar and flow rate 5 L/s minmum

THE UNIQUE DISC TECHNOLOGY

1. ARKA adopt colorful & thin polypropylene discs of micron precise level. The discs are diagonally grooved on both sides in opposite directions.
2. A series of discs are stacked and compressed on a specially designed filter spine.
3. The grooves of any two adjacent discs with opposite direction pressed together,then it will create a series of crossing points which form multiple particle traps.
4. In the filtration process, the force of the spring along with the differential pressure firmly compresses these discs together and providing exceptional filtration efficiency.
5. Filtration occurs as water percolates from micron rating,there are multiple crossing points in each track, creating distinctive in-depth filtration. How it works?
With unique flow structure design,it creates centrifugal force which will sink the sand or sewage into bottom collector.The clean water will flow out from outlet,the sand and gravels collector can be cleaned and maintained if necessary.

OUR SERVICE
1. OEM/ODM services are accepted.
2. Technical support and design personalized solutions by the engineer team.
3. Accept sample order.
4.Quality tracking & service.
5.Provide the free catalog for you.
6.Various irrigation products for your choice.
7.Warranty: 1 year warranty from the shipping date.

FAQ
Q1. Are you manufacturer or trade company? We are a manufacturer specialized in Agriculture Watering Irrigation for more than 16 years.
Q2.Where's your factory located?
Our factory locates on Fuzhou, Fujian Province. 1.5-hours by plane or 6-hour distance by trainaway from Guangzhou.
Q3. Can you offer the sample?
We can offer samples for testing.
Q4. How long can I expect to get the sample?
Usually it will takes 5-7 working days.
Q5. What is your MOQ? Our MOQ usually is 100-500 pcs, If you have the special request, let's discuss it.
Q6. What's your delivery time?
The delivery time about 15-25 days.
COMPANY PROFILE
1. Founded in 2008, Fuzhou Arthas Fluid Equipment Technology Co.,Ltd. is a professional enterprise with the integration of R&D, production and sales.
2. Our company prossess 30000 m2 modernized industrial plants including the molding, plastic injection, metal stamping, electronic appliances and integrated production.
3. Our products are exported to Europe, U.S.A., North America and Southeast Asia etc. , and have been offering OEM and ODM service for many famous companies worldwide.
4. We have passed the ISO9001 quality system certificate and CE certificate.
5. Strong capacity in supplying chain managerment, integrated production and manufacturing.
6. Unique innovation in the development and design of water recycling system control integration.
