High Accuracy Automobile Car Navigation Active gps module Positioning Module

Product Description

Product Description

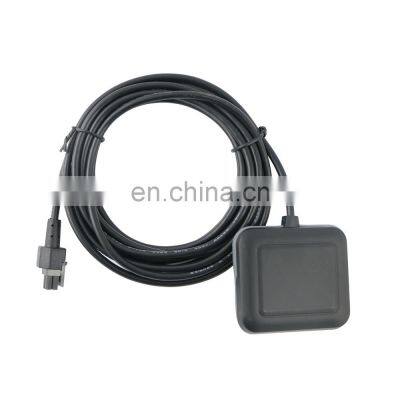

GPS mouse interface optionsMolex Rearview Mirror DVR car waterproof GPS GLONASS BEIDOU GALILEO Navigator Receiver GPS mouse, LED indicator, NEMA protocolPart#: HR-56R-MT-P02-The Molex connector GPS Receiver Module we are going to ship is based on the below default. -For your customized requirements, like connector type, pin assignment, cable length, main chip, baud rate, etc, please kindly contact us before purchasing. Thank you. The default GPS receiver module is as below: -Bands: GPS bands -Connector: Molex (as per the drawing below) -Cable length: from 1.5 meters to 3 meters (depending on our stocks) -Mounting: Magnetic -Chip: MediaTek single chip -Baud Rate: 9600bps -Module Type: UART/ RS232 -Waterproof degree: IP67 -LED indicator: Available Product Description1. ApplicationThe Gmouse is equipped with a P01-P07 Connector to your application platform and power supply connection. The HR-56R-MT Gmouse It consists of a MediaTek MTK single chip GNSS IC which includes the RF part and Baseband part, USB,RS232 level conversion chip, a patch antenna, a LNA, a SAW filter, a TCXO, a crystal oscillator, Also comes with a 0.22F crystal capacitor ,can backup satellite ephemeris about 2 hour. Pin Assignment2 Description2.1 Key FeaturesParameterSpecificationPower Supply• Supply voltage: 3.3V~5.5V Typical: 5.0VPower Consumption• Acquisition: 45mA @VCC=VBAT=5.0V• Tracking: 40mA @VCC=VBAT=5.0VReceiver Type• Code 66 search channels, 22 synchronous tracking channels• GPS L1 1575.42MHz C/A SBAS: WAAS, EGNOS, MSAS, GAGANSensitivity• Tracking: -165dBm• Re-acquisition: -156dBm• Acquisition: -146dBmTTFF (Autonomous)• Cold start: 35s typ @-130dBm• Warm start: 30s typ @-130dBm• Hot start: 1s typ @-130dBmHorizontal PositionAccuracy (Autonomous)• <2.5m CEP @-130 dBmMax Update Rate• Up to 1Hz by faultAccuracy of 1PPS Signal• not enabledAcceleration Accuracy• Without aid: 0.1m/s²Dynamic Performance• Maximum altitude: 18,000m• Maximum velocity: 515m/s• Acceleration: 4GPin Port• Reference P01-P07 • Supports baud rate from 4800bps to 115200bps, 9600bps by default• All port is used for NMEA output, MTK proprietary commands input and firmware upgrade.Temperature Range• Normal operation: -40°C ~ +85°C• Storage temperature: -45°C ~ +125°CPhysical Characteristics• Size: 55±0.20 × 46±0.20 ×14.5±0.20mm• Connecting line specifications: Reference P01-P07, L=150cm• Weight: Approx.28g2.2 Power SupplyRegulated power for the HR-56R-MT is required. The VCC Pin Need a stable DC voltage supply. Power supply ripple must be less than 30mV. The input voltage Vcc should be 3.3V~5.5V, Recommended power supply voltage is 5.0V. maximum current is 45mA. Suitable decoupling must be provided by external decoupling circuitry.2.3 RS232 PortsThe module supports two full duplex serial channels RS232. All serial connections are at 5.0V TTL logic levels, if need different voltage levels, use appropriate level shifters. The baud rate of both serial ports are fully programmable, the data format is however fixed: X, N, 8, 1, i.e. X baud rate, no parity, eight data bits and one stop bit, no other data formats are supported, LSB is sent first. The modules default baud rate is set up 9600bps, however, the user can change the default baud rate to any value from 4800 bps to 38400kbps. RS232 is used e.g. for booting and NMEA interface. CON Pin Description Pin No.Pin nameI/ODescriptionRemarkRS232 Port (P02:Micro-Fit 3.0 Connector)1RXDO Data Input(RS232 level) 2VCCIModule Power SupplyVoltage range: 3.0V~5.0V3TXDI Data output(RS232 level) 4GNDGGround 2.4 UART Ports The module supports two full duplex serial channels UART. All serial connections are at 3V CMOS logic levels, if need different voltage levels, use appropriate level shifters. The baud rate of both serial ports are fully programmable, the data format is however fixed: X, N, 8, 1, i.e. X baud rate, no parity, eight data bits and one stop bit, no other data formats are supported, LSB is sent first. The modules default baud rate is set up 9600bps, however, the user can change the default baud rate to any value from 4800 bps to 115kbps. UART port can be used for firmware upgrade, NMEA output and UBX proprietary commands input.CON PIN DescriptionPin No.Pin nameI/ODescriptionRemarkUATR Port (P02:Micro-Fit 3.0 Connector)1RXDIUART Serial Data Input 2VCCIModule Power SupplyVoltage range: 3.0V~5.0V3TXDOUART Serial Data output 4GNDGGround
