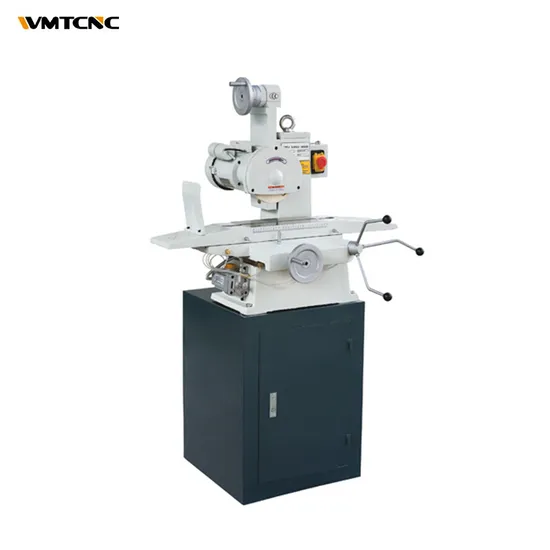

MJ7115 Mnual Surface Grinding Machine with CE Standard
Basic Info.
Model NO.
MJ7115
Type
Surface Grinding Machine
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Width of The Worktable
152mm
Length of Worktable
450mm
T-Slot
1X12
Main Motor Power
1.1kw
Spindle Speed
2850r/Min
Transport Package
Standard Ply-Wood Case
Specification
CE SGS ISO9001
Trademark
WMTCNC or customized logo
Origin
Chizhou, Anhui, China
HS Code
8460190000
Production Capacity
50 Sets/Month
Product Description
Main features:1)Integrated grinding head of high quality, high rigidity and accuracy.
2.Small size, light weight,easyoperation&maintenance.
3)Centralized lubrication for oil pump.
Standard configuration:Grinding wheel, grinding wheel adaptor, grinding wheel dresser, pad irons, tools, etc.Special configuration:Stand, permanent magnetic chuck, precision flat vise.Ball leadscrew model.
Specification:
| SPECIFICATIONS | Metric | Inch |
| Longitudinal stroke | 340mm | 14 |
| Lateral stroke | 170mm | 7 |
| Grinding height | 210mm | 8 |
| Area of table | 152mm×304mm | 6×12 |
| Width of T-slot | 1-12mm | 1-0.47 |
| Cross feed per graduation | 0.02mm | 0.001 |
| Cross feed per round | 2.54mm | 0.1 |
| Vertical feeds per graduation | 0.025mm | 0.001 |
| Vertical feed per round | 1.25mm | 0.05 |
| Roughness | 1.6μm | |
| Grinding wheel | 180mm×32mm×13mm | |
| Power of motor | 0.55kw | |
| N. W. / G.W.of machine | 210/258kg | |
| N. W. / G.W.of stand | 30/54kg | |
| Overall dimension of machineL×W×H | 930×780×730mm | |
| Case dimension of machineL×W×H | 930×780×1480mm | |
| Case dimension of standL×W×H | 720×550×550mm | |
