Wssx Series Armored Bimetal Temperature Gauge with Hot Jacket Electric Contact Thermometer

Product Description

Product Description Product Brief Introduction:
The Bimetal Thermometer is a sophisticated field detector instrument designed for precise measurement.
catering to temperatures within the middle and low range. This versatile device can effectively measure the temperature of liquids, steam, and
gases, offering a measurement range from -50ºC to +500ºC, making it ideal for use in a variety of production processes.
Features:
On-site temperature display ensures an intuitive and convenient user experience.
Built for safety and reliability, this instrument guarantees a long service life.
Available in multiple structural forms to cater to diverse requirements.
Working Principles:
The bimetal thermometers are constructed with a bimetallic strip wound into a circular shape. When heated, one end expands and drives the pointer to rotate, allowing the instrument to display the corresponding temperature value.

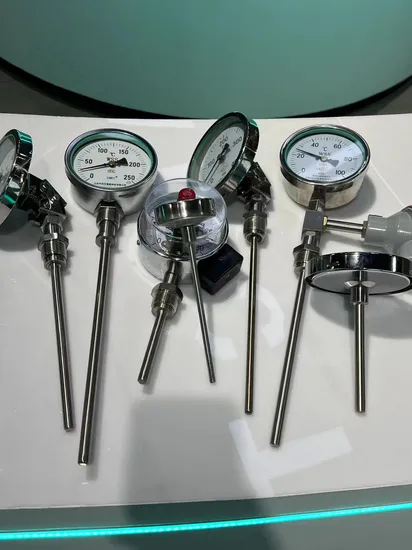

Detailed Photos
Product Parameters Main Technical Parameters:
Product Executing Standard
JB/T8803-1998
Dial nominal diameter:100,150
Accuracy Class:1.5
Thermal response time:≤40S
Protection Class: IP55
Electrical parameters

Rated power VA	Max working V	MAX permit C
10	220 A.C	0.7A
	24 D.C

Normal working atmospheric conditions
Temperature-25~+55ºC,Relative humidity≤85%
Setting Point Tolerance
Setting point tolerance no greater than
1.5 times of basic tolerance
Switchover tolerance
The tolerance no greater than 1.5 times of basic tolerance
Repeatability limits no greater than 1/2 of absolute basic tolerance
Insulation resistance

Rated voltage	DC test voltage	Insulation resistance
24 D.C	100	7M Ω
220 A.C	500	20M Ω

Hot Jacketed Bimetal Thermometer
Main Technical Parameters:
Dial nominal diameter:100,150
Accuracy Class:1.5
Connection Size: M27×2,NPT1/2,G1/2
Thermal response time:≤40S
Protect Class: IP55
Type and Specification

Type	RangeºC	Accuracy	Sheath	Size	Nominal pressure	Sheath Type
WSS-403S	-80~+40 -40~+80 0~50 0~100 0~150 0~200 0~300 0~400 0~500	1.5	1Crl8Ni9Ti 304 316 316L HC-276	75 100 150 200 300	≤300Mpa	Thread
WSS-503S
WSS-413S
WSS-513S
WSS-483S
WSS-413S
WSS-483S
WSS-403L
					15-40Mpa*	Flange
WSS-503L
WSS-413L
WSS-513L
WSS-483L
WSS-583L
WSS-403S
WSS-483L

Note:1) can be equipped with various mounting sheath
2) the other material of sheath based on agreement
3) mark "*" means the nominal pressure depends flange pressure class
Bimetallic Thermometer withThermocouple (resistance)
Main Technical Index:
Dial nominal diameter:100,150
Hot response time:≤40S
Protection Class:IP55
Accuracy Class:1.5
Thermocouple:I class,1.5ºCI class,2.5ºC
Thermal resistance: A class,±(0.15+0.005|t|)
B class,±(0.30+0.005|t|)
Type and Specification

Type	Index No.	TemperatureºC	Accuracy	Sheath Material	Insert depth
WSSE-401	B class	-50~+40 -40~+80 0~50 0~100 0~150 0~200 0~300 0~400 0~500	1.5	1Crl8Ni9Ti 304 316 316L HC-276	150 200 300 400 500 750 1000
WSSE-501
WSSE-411
WSSE-511
WSSE-481
WSSE-581
WSSP-401	Pt100
WSSP-501
WSSP-411
WSSP-511
WSSP-481
WSSP-581
WSSXE-401	E
WSSXP-401	Pt100
WSSXE-411	E
WSSXP-411	Pt100
WSSXE-481	E
WSSXP-481	Pt100

Note:1) Thermocouple I class, thermal resistance A class available upon request.
2)Sheath in other materials available upon request.
