150 Tons Shackle Type Wireless Load Cell, Load Shackle, Load Monitoring

Product Description

360 Gold Telemetry Load Cell
Our Answer to Measurement of Tensile Load in Heavy Industrial Applications:

All our load links are manufactured from anodized aerospace-grade aluminum, allied with our full O-ring sealing gives ingress protection of IP67.

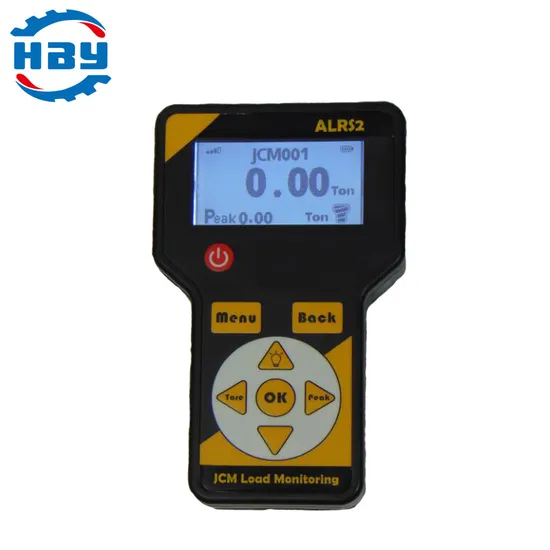

Features of ALRS2 electronics
• 350 metre range
• Constant peak and actual load continually displayed
• 5 units of measurement, Te, Kgs, lbs, US Tons, kN
• Internal antenna
• Display light for easy viewing
• Fast update speed
• Simple battery change out
• Optional logging package
• Easy to use
Features of Gold telemetry load links
• Full O'ring sealing
• Lightweight aerospace aluminium
• Flush covers
• Full traceable calibration
• Temperature compensated
• 360° radio output
• Units available from 2.5 to 500 Tonne
• 1 year battery life option on load link

Capacity (Te)	A	B	C	D	L	T
6.5	102	52	22	25	84	36
12	147	72	32	35	119	51
25	216	103	45	50	146	74
35	238	111	50	57	187	83
85	340	162	75	83	260	127
120	428	208	95	95	350	147
150	485	238	105	108	370	169
250	565	299	130	140	508	205
300	585	325	140	150	570	205
500	710	298	180	185	636	256

Standard Load Range	6.5, 12.5, 25, 50, 85, 120, 200, 300, 400, 500 Tons
Full Load Output	1.5 nominal mV/V
Excitation Voltage(Recommended) dc or ac	10V
Excitation Voltage(Max.) dc or ac	15V
Safe Service Load	150%
Proof Load	200%
Non Linearity	<1.0%
Repeatability	<0.25%
Output at zero Load	<+/-2.0%
Input Resistance	390+/-20 Ohms
Output resistance	350+/-5 Ohms
Operational temperature range	-20 to +80 deg C
Compensated temperature range	-10 to +50 deg C
Temperature coefficient of zero	+/-0.010 %/deg C
The temperature of the coefficient of span	+/-0.010 %/deg C
Environmental protection	IP67
All percentages related to full rated load
Insulation	>2 at 100 V dc G Ohms

Why us: 360°(600m) radio signal transfer Internal antenna Linear construction Up to 500-hour battery life Simple battery change out Reduced costs Workable under bad weather such as harsh heavy rain, snow, and dust. Compact structure and lighter weight Works with kinds of controllers Safety factor 5:1 to ensure safety performance Accuracy 1% for a full range Specific calibration report for each load cell
units from 2.5 to 50 Tonne are supplied in an IP67 transit case,
75 to 500 Tonne units supplied in a hinged wooden transit crate, made with heat treated wood so ready for international shipping
We are able to supply direct from our factory or via our growing list of sales partners worldwide
