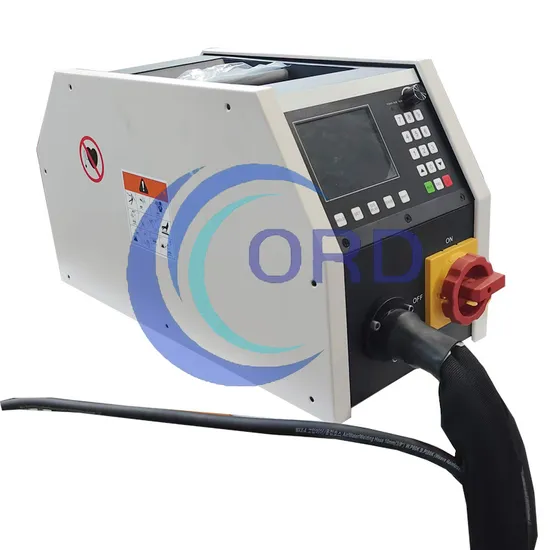

Handheld Induction Heating Machine for Bolt and Steam Boiler (DSP-50KW)

Product Description

Handheld Induction Heating Machine for Bolt and Steam Boiler ,Brazing, Welding, Soldering(DSP-50KW)
**Key Features:**
1. **Rapid Induction Heating Technology**
- Utilizes high-frequency electromagnetic induction for fast, precise heating of bolts, nuts, and studs (up to 1200°C/2192°F in seconds).
- Eliminates open flames or uneven heating, ensuring consistent results and safer operation.
2. **Portable & Lightweight Design**
- Compact construction (weighs only [X kg/lbs]) for easy transport to job sites, workshops, or confined spaces.
- Built-in carrying handle and rugged casing for durability in harsh environments.
3. **User-Friendly Operation**
- Intuitive Digital screen + buttons with preset programs for common bolt sizes and materials (e.g., steel, stainless steel).
- Adjustable temperature and time settings for customized heating cycles.
4. **Energy-Efficient & Safe**
- Low power consumption with automatic shutoff to prevent overheating.
- CE/RoHS-certified components and insulated grips for operator safety.
5. **Multi-Application Compatibility**
- Ideal for loosening seized/frozen bolts, thermal expansion fitting, and industrial maintenance tasks.
- Compatible with bolt sizes ranging from M6 to M36 (or specify your product's range).
1 The integrated modular induction heating equipment manufactured by our company is the newest high-tech product formed by adopting the most advanced power electronic power devices and unique converter control technology in the world with reasonable structure design.
1) This equipment uses the digital signal processing (DSP) digital real-time high-speed signal processor and DDS (Direct Digital Synthesizer) direct digital frequency synthesizer.
2)Using advanced digital control technology and digital phase-locked loop tracking technology and computer control technology, the system structure is safe and reliable, stable performance and simple operation.
3) High temperuture: the heating temperature can reach over 1500C.
4) Quick Heating: Reach the target temperature quickly!
5) Various material useing: Applicable to all kinds of metal material, such us: stainless steel, carbon steel, copper, brass, alumimum, Zinc, tin, titanium and so on.
6) Hand-hold coaxial transformer:Easy to hand hold work, can also automatically intgrate into the robot arm.
7) Quick change coil/inductor:induction coil/indcutor made into different shapes and sizes, and can be easily removed from HHT TO replace another coil.
8) It is suitable for Heat and weld of copper pipe and copper pipe, pipe and steel pipe, steel tube, copper tube and stainless steel.
9) Small size, light weight, high protection, high precision, protable simple and convenient,
10)The car can be equipped with positioning caster, which can be used for fixed place or mobile.
11) RS485 communication, can control in your PLC system. It can be compatible with the existing PLC on the market, and is conducive to the functional transformation of the existing PLC system and the further expansion of the automation system.
12) More options for working mode: Time, temperature, Power, constant Power and so on. Can know the heating curve.
13) Full Digital control, can shows heating time, heating power, heating current, Heating inpedance, frequency and so on in the machine.
14) IP54 can work at outside that the environment not good.
15) 5M, 6M, 7M, ....10M, ...20M, 30M,40M,50M,100m and so on cables Connection with heating head can handle it will not reduce the power , can heat some workpiece that normal coil can not get it
Technical Specifications:

Type	ORD-50KW
Rated Output Power	50KW
Rated Output Frequency	10-40KHZ
Can expand frquency	1-100khz
Overload Heating time	45%/10min
Power Adjust Arrange	1.5-100%
Coaxial Flexible cable length	5M,8M,10M ,15M ,20M 30M,50M 100M,
Input Voltage	380v*3phase 50-60hz
Max power	50kw
Protection Level	IP54
Environment Temperature	+5c--+50C
Cooling water flow	21L/MIN
Cooling water Pressure	4-8Bar
Weight	About 80kg

Handheld Induction Heating machine applications :
- Industrial maintenance and repair
- Automotive and machinery assembly
- Construction and pipeline projects
- Power generation and shipbuilding
and more....
