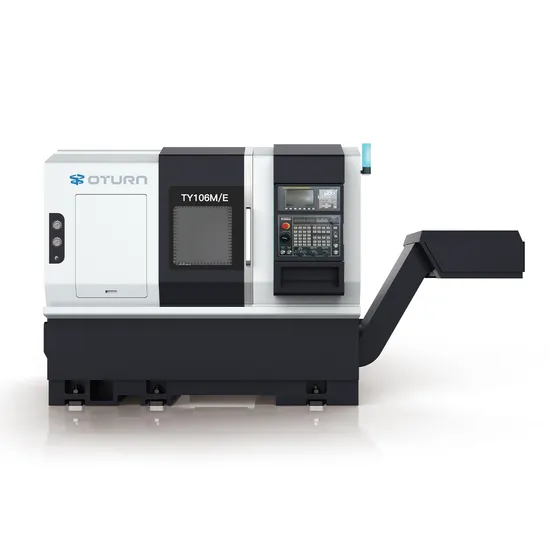

Oturncnc Ety160m 5 Axis Slant Bed CNC Lathe Machine CNC Turning Center with Y Axis and Living Tool

Product Description

Product Description
The machine adopts an optimized 30-degree stepped flat rail structure design, and has high precision, super rigidity and excellent cutting stability. High-strength HT300 cast iron one-piece strong structure bed, the application of finite element analysis, the overall mechanical rigidity and stability are excellent, and can maintain long-term reliable precision, improve processing stability and tool life, stress relief treatment improves precision stability, The high-strength roller rail design structure, the transmission system adopts the screw pre-tension design to improve the rigid performance, and the simple and elegant appearance conforms to the trend of the trend.
Main features of this machine tool:
1. Direct drive synchronous electric spindle device: magnetic ring incremental encoder (sincosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. Effectively eliminate the vibration of the main shaft, and the deflection accuracy of the nose end is within 0.002MM. Improve the surface finish of the workpiece. The rear-mounted rotor is used to facilitate installation and maintenance. The spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The main shaft system has undergone strict dynamic balance testing, with good precision retention, high rigidity and high efficiency, making the whole machine not a product with complicated shapes and high finish.
2. High rigidity integral design servo power turret. It is helpful for the rapid and precise tool change performance of the servo turret, coupled with the power milling of the high-speed power shaft, to achieve the excellent processing capability of turning and milling. The tool holder is installed with a high-rigidity BMT installation interface. The power transmission shaft is driven by a servo spindle motor.
3. The machine tool is equipped with roller linear guide rails and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. The amount of displacement will be minimized, greatly improving the machining accuracy. The high-rigidity, large-size, and heavy-duty linear guide rail maintains the same accuracy when the machine is impacted, and the displacement is smooth and the noise is low, which can prolong the service life.
4. Programmable hydraulic tailstock with high rigidity integral tailstock can eliminate vibration and has good stability. Programmable or manual button control, convenient, fast and reliable.
5. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps and hydraulic valves and other components, which greatly reduces the failure rate. The design of the hydraulic and lubrication system is simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
6. The Taiwan rotary chuck oil cylinder is adopted, and the automatic chip removal device is selected at the same time, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. Special fixture.safe and efficient production. The above functional components can be programmed and controlled, and various functions can be designed and installed according to the special requirements of the user special fixture.
Product Parameters

Item	Unit	TY106M/E
Max. swing diameter over bed	mm	Φ600
Max. processing diameter	mm	Φ310
Max. processing diameter over tool holder	mm	Φ200
Max. processing length	mm	340
Distance between centers	mm	450
Spindle type	type	A2-5
Max. spindle speed	rpm	5500
Hydraulic Cylinder/ Chuck	lnch	6″
Spindle bore diameter	mm	Φ56
Max. bar diameter	mm	Φ46
Direct drive spindle motor power	kw	17.5
Direct drive spindle motor torque	Nm	62-125
X axis travel	mm	200
X/Z axis rail specifications	spes	Roller35
Z axis travel	mm	420
X/Z axis motor power	kw	1.8
X/Z axis rapid speed	m/min	24/24
X/Z axis positioning accuracy	mm	±0.005
X/Z axis repeatability	mm	±0.003
Power turret type	pcs	BMT45-12T
Power turret motor	KW/Nm	5.5/35
Max. power tool holder speed	rpm	6000
External diameter tool holder specification	mm	25X25
Internal diameter tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.15
Positioning accuracy	/	±2"
Repeatability	/	±1"
Hydraulic tailstock	/	Programmable
Max. Tailstock travel	mm	360
Tailstock sleeve tapered hole	type	Mohs4#
Sleeve diameter	mm	Φ80
Sleeve travel	mm	100
Machine size	mm	2200*2000*1800
Machine weight	kg	3800
Cutting fluid tank volume	L	150
Cutting coolant water pump	kw	0.75
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricat tank volume	L	2
Automatic lubrication pump motor power	W	50
Coolant water pump power	W	750
