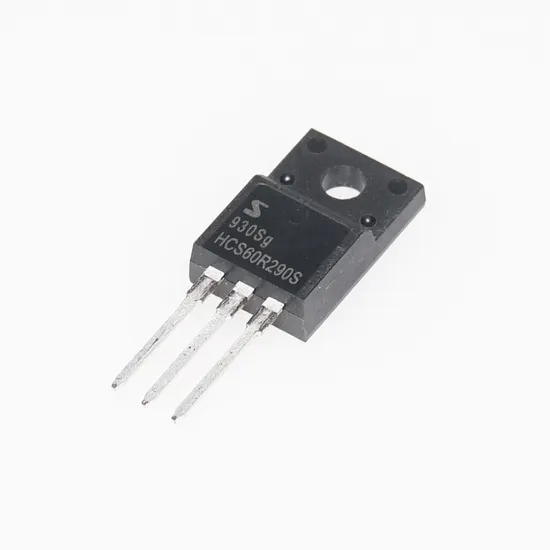

600V N-Channel Super Junction MOSFET Fetures Applications N-Ch SJ MOS (S3) ESD Zener Application SMPS, UPS, PFC, TELECOM, SemiHow-HCS60R290S

Product Description

600V N-Channel Super Junction MOSFET Fetures Applications N-Ch SJ MOS (S3) ESD Zener Application SMPS, UPS, PFC, TELECOM, SemiHow-HCS60R290S
Features :
• Very Low FOM (RDS(on) X Qg)
• Extremely low switching loss
• Excellent stability and uniformity
• 100% Avalanche Tested
• Built-in ESD Diode
Applications :
• Switch Mode Power Supply (SMPS)
• Uninterruptible Power Supply (UPS)
• Power Factor Correction (PFC)
• TV power & LED Lighting Power
• AC to DC Converters
• Telecom
Technical Data

Type	N-Ch SJ MOS (S3)
Package	TO-220FS
VDS [V]	600
ID [A]@25ºC	12.9
RDS(ON) [Ω] (max.)@VGS=10V	0.29
VGS(th) [V](min.)	2
VGS(th) [V](max.)	4
PD [W]@25ºC	32
Qg [nC]	27
EAS [mJ]	175
Option	ESD Zener
