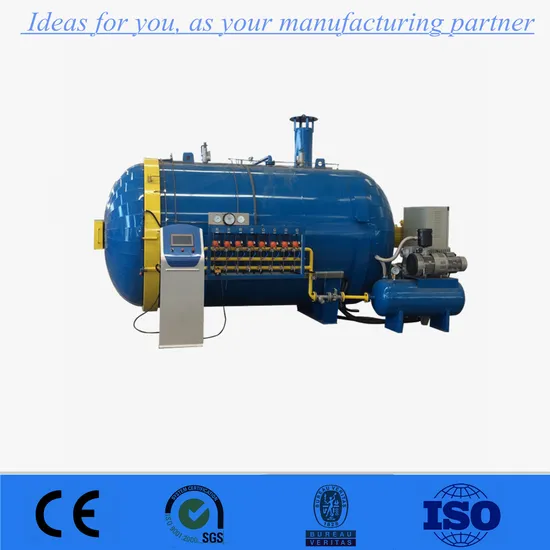

High Temperature Carbon Fiber Autoclave Composite Curing Oven

High Temperature Carbon Fiber Autoclave Composite Curing Oven

US$50,000.00
1 Set
US$49,000.00
2+ Sets

Basic Info.

Model NO.
Non-standard
Function
Storage Pressure Vessel, Heat Pressure Vessel, Reaction Pressure Vessel
Application
Liquid
Material
Carbon Steel
Pressure
0.1MPa≤p<1.6MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of Core Components
1 Year
Core Components
PLC, Motor
Dimension(L*W*H)
Customized
Capacity
Customized
Weight
as Customer′s Requirement
Volume (M³)
Customized
Design Pressure(MPa)
Customized
Max Working Pressure(MPa)
30 MPa
Design Standard
ASME, PED, GB150
Working Temperature(ºC)
100 - 500 ºC
After-Sales Service Provided
Field Installation, Commissioning and Training
Key Selling Points
Famous Brand PLC
Applicable Industries
Manufacturing Plant, Construction Works
Transport Package
Standard Packaging or Under Customers′ Requirement
Specification
Provided
Trademark
Evertech
Origin
Qingdao, China
HS Code
8419899090
Production Capacity
30 Set/Sets Per Month

Product Description

Product Description Composite material (also called a composition material or composite) is made from two or more constituent materials with significantly different physical or chemical properties that produce a material with characteristics different from the individual components when combined. Industrial composite autoclave is one of the effective and most applicable techniques for composite production. In the composite manufacturing process, the assembly of a two-sided mold set that forms both surface of the panel is placed into the industrial autoclave which provides both required elevated pressure and elevated temperature.
Item Specifications
Effective Diameter(mm) 600-6,000
Effective Length(mm) 800-300,000
Maximum Working Pressure(mpa) 0.2-1.0
Maximum Working Temperature(ºC) 100-500
Temperature Control Accuracy(ºC) ±0.5-±3.0
Tank Temperature Uniformity(ºC) 1.0-3.0
Pressure Control Accuracy(mpa) ±0.01
Vacuum Limit(kpa) ≤2
Remark: Other specifications can be customized according to specific requirements.
Features of Composite Autoclave High quality, safety, easily operation, control and longer serve life are primary design and fabrication considerations. All our industrial autoclaves are integrated as a seamless system by the powerful controlling system with interactive screens and multilevel security.
Turn key solution for large, high productive units to lab autoclaves.
Integrated system design with over 20 years of industrial experiences.
Professional modular manufacturing.
Computer control system specifically for composite autoclave use.
Automatic control of over pressure or temperature protection, door safety interlock.
High quality, energy saving.Custom designs to suit your needs.
Customized installation to satisfy your demands.
Safe operation, over pressure and temperature protection, door safe interlock.
Advanced composite curing and bonding process.
Reliable and efficient operation.Easy to operate, longer service life.
Product Display
Product Details
Packing & Delivery
Manufacturing Technique If you are interested in our products, please visit our official website: Cusomer Photos & Exhibition
Certifications
About company Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
