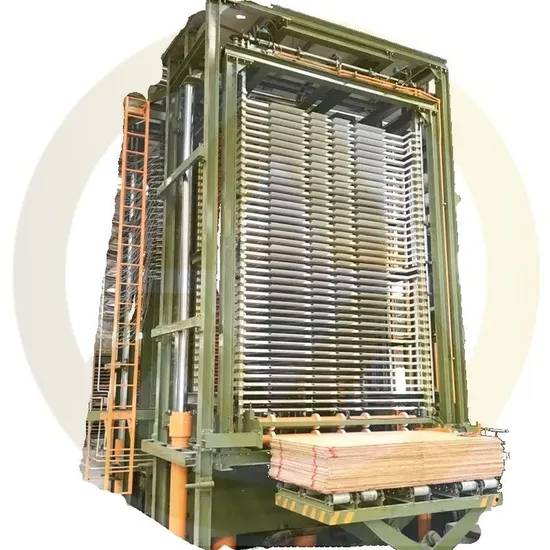

High Quality Automatic Plywood Production Line Industry Price for Sales to India Wood Based Panel Machine
Basic Info.
Type
Hot Press Machine
Automatic
Automatic
Certification
CE, ISO
Color
Customize
Function
Put Pressure on The Plywood
Weight (Kg)
9000 Kg
Condition
New
Place of Origin
Shandong, China
Usage
Plywood Production
Transport Package
Plastic Film / Plywood
Specification
4220*2020*11300 mm
Trademark
ZHONGHE
Origin
Linyi City, China
HS Code
847930000
Production Capacity
3 Sets / Month
Product Description
film faced plywood hot press machineDetailed Photos
Product Parameters
| 500Ton Hot Press Machine | |
| Pressure | 500tons |
| Layers | 15Layers |
| Hot platen distance | 70mm |
| Hot plate qty | 16pcs |
| Heating platen size | 2700*1370*42mm |
| Qty of Cylinder | 2 |
| Diameter of cylinder | 360mm |
| Stoke of cylinder | 1050mm |
| Upper ,bottom crossbeam | 900mm |
| Thickness of main frame steel | 35mm Q235 |
| Overall dimension | 3550*1370*4650mm |
| Weight | About 38Tons |
| 600Ton Hot Press Machine | |
| Pressure | 600tons |
| Layers | 10Layers |
| Hot platen distance | 100mm |
| Hot plate qty | 11pcs |
| Heating platen size | 2700*1370*52mm(two inlet two outlet) |
| Diameter of cylinder | 6*ø220mm,2*ø120mm,(lifting cylinder),totoal 8cylinder,Wuxi cylinder |
| Stoke of cylinder | 1000mm |
| Upper ,bottom crossbeam | 900mm |
| Thickness of main frame steel | 35mm Q235 |
| Overall dimension | 3600mm*1370mm*4200mm |
| Weight | About 42Tons |
| 800Ton Hot Press Machine | |
| Pressure | 800tons |
| Layers | 25Layers |
| Hot platen distance | 80mm |
| Hot plate qty | 26pcs |
| Heating platen size | 2700*1370*42mm |
| Qty of Cylinder | 4 |
| Diameter of cylinder | 320mm |
| Stoke of cylinder | 2000mm |
| Upper ,bottom crossbeam | 900mm |
| Thickness of main frame steel | 40mm Q235/(4 groups frame) |
| Overall dimension | 3600mm*1370mm*6720mm |
| Weight | About 86Tons |
Company Profile
Packaging & Shipping
FAQ
1. Q: How many years had your company been established ? A:We specilized in wood based panel machinery for 10 years. 2. Q:QUALITY CONTROL? A: Each machine will be tested three times before delivery. 3. Q:DELIVERY TIME? A: 30-90 days upon receiving deposit. 4. Q:Factory Layout Design? A:We have engineer team to make layout drawing for customers for free. 5. Q:PAYMENT TERMS? A: T/T, L/C D/P are accepted. 6. Q:MOQ?
A: 1
