Advanced Machining of Steel Structures Industrial CNC Mill Machinery Machine Center

Product Description

Hot Sale: Premium Efficiency Vertical CNC Milling Lathe Machine Now Available
Product Description
TZ-V640
The Line Rail Vertical Machining Center TZ-V640 stands as a beacon of innovation in CNC machine tools. This state-of-the-art equipment expertly blends cutting-edge design principles like ergonomic sophistication, precision manufacturing, and advanced automation technologies. Through comprehensive simulations and extensive prototyping, it guarantees exceptional performance, making it an invaluable asset across diverse industries. From medical to UAVs, new energy auto parts, precision fixtures, and parts for automation equipment, this machine promises superior capabilities in the mass production of precision components.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

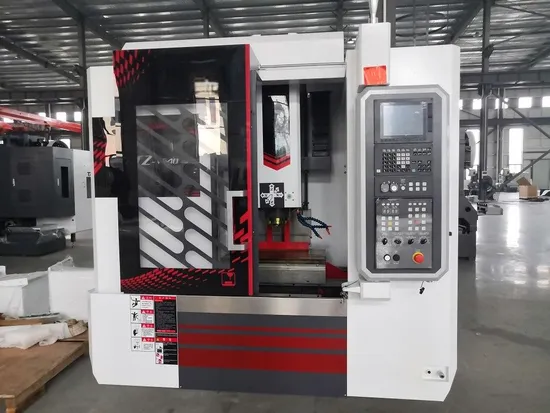

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• Achieve supreme processing conditions in a highly efficient production environment.
Our lineup includes an imported horizontal machining center, vertical machining center, CNC boring machine with a rotating table, and a gantry guideway grinding machine. These machines deliver unparalleled workpiece accuracy, significantly boosting assembly precision and enhancing the long-lasting durability of accuracy.
• Advanced Detection Methodologies
Positioning accuracy is precisely gauged and finely tuned utilizing laser technology, in strict compliance with the German VDI3411 inspection specification, encompassing five rigorous tests.
Every machine tool is subjected to rigorous processing tests prior to dispatch, ensuring they consistently exceed the actual processing accuracy standards.
Product sample
• This CNC machine center masterfully integrates milling, drilling, and tapping functions.
• Expertly handles CNC machining of various materials, including aluminum, steel, copper, and an array of non-metal substances.
• Perfectly suited for industries ranging from 3C electronics and rail transportation to aerospace and linear module guide rails.
Packaging & Shipping
•Highly Protective
•Structural Stability
•Eco-Friendly and Recyclable
Professional Team
FAQ
1. What are the Payment Terms?
A: Payment is managed via T/T, with a 40% initial payment upon order, and the remaining 60% due before shipment.
2. What are your trade terms?
A: We accept a variety of trade terms including FOB, CFR, and CIF.
3. When is the delivery time?
A: For standard machines, preparation is achievable within 30 days. Special machines may require more time. You can order based on our detailed delivery timeline.
4. What is your minimum order quantity and warranty?
A: The minimum order is one set, with a comprehensive one-year warranty included.
5. How are the machines packaged?
A: Machines are securely packed in durable wooden cases as standard.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we'll recommend the most suitable model. Alternatively, feel free to select the model that best fits your needs.
Additionally, you can send us product drawings for expert guidance on selecting the ideal machine for your requirements.
