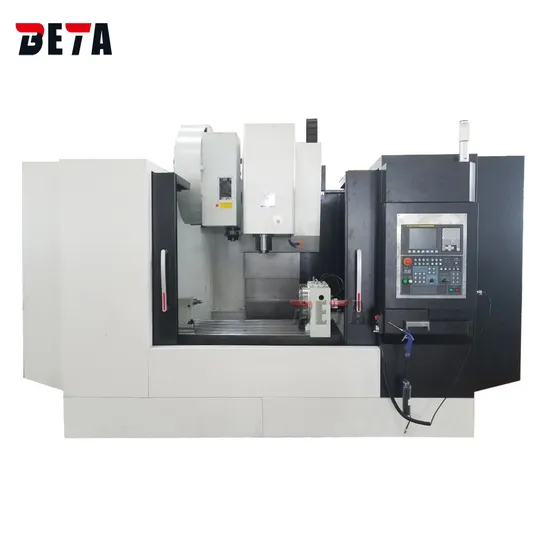

Chinese Bt40-10000rpm Spindle Vertical CNC Milling Machining Center Vmc1300 Price
Basic Info.
Model NO.
vmc1300
Type
CNC Milling Machine
Object
Metal
Structure
Bed type
Milling Cutter Type
All Kinds
Milling Cutter Structure
All Kinds
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Guideway
Z Axis Box Guideway
Worktable Size
1500X700mm
X/Y/Z Axis Travel
1300/700/700mm
Spindle
Bt40
Delivery Time
2 Months
Color
Customized
Voltage
Customized
Spindle Motor
11kw
Atc
24 Pieces Arm Type Tool Magazine
Spindle Speed
8000rpm
Guideway Type
X/Y Axis Linear Guideway
Spindle Drive
Belt Drive CNC Milling Machine
Transport Package
Wooden Case
Specification
VMC1300
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
400.00cm * 300.00cm * 290.00cm
Package Gross Weight
9500.000kg
Product Description
Chinese BT40-10000RPM Spindle Vertical CNC Milling Machining Center VMC1300 PriceStandard accessories:
Taiwan spindle BT40-10000RPM (highest speed 8000rpm)
Taiwan or Germany ball screws
X,Y axis Taiwan or Germany linear guide ways
Z axis Box guide ways
Taiwan arm type tool magazine with 24 tools
spindle blowing chip removal system
spindle air curtain protection
Taiwan or Germany bearings
auto centralized lubrication
rigid tapping , two water cooling, one air cooling
electrical hand wheel
RS232 interface
working lamp & alarm light
DNC online processing,
Schneider electric
heat exchanger
| Items | unit | VMC1300 |
| Table size | mm | 1500x700 |
| T slot (No. x distance x width) | no | 5x135x22 |
| Max. load of worktable | kg | 1000 |
| X/Y/Z-axis travel | mm | 1300/700/700 |
| Spindle nose to table surface | mm | 160-860 |
| Spidle axis to column surface | mm | 760 |
| Spindle taper | BT40 | |
| Speed Range | rpm | 40-8000 |
| Max.spindle torque | N.M | 52.5/95.5 |
| Spindle motor power | kw | 11 |
| Feed motor X/Y/Z | kw | 3/3/3 |
| Cuttiing feed X/Y/Z | mm / min | 1-10000 |
| Rapid feed X/Y/Z | m / min | 24/24/18 |
| Tool magazine capacity | piece | 24 |
| Tool magazine type | Arm type tool magazine | |
| Max. tool diameter (full/empty) | mm | 80/150 |
| Max. tool length | mm | 300 |
| Max. tool weight | kg | 7 |
| Tool changing time (tip to tip) | s | 1.55/3.8 |
| Positioning accuracy | mm | ±0.005/300JIS |
| Repeat positioning accuracy | mm | 0.003 JIS |
| Overall dimensions(LxWxH) | mm | 3700*2500*3000 |
| Packing size | mm | 4000*3000*2900 |
| N.W./G.W. | kg | 9500 |
| Delivery time | 2 Months |
| Color | customized |
| Warranty period | 12 Months |
