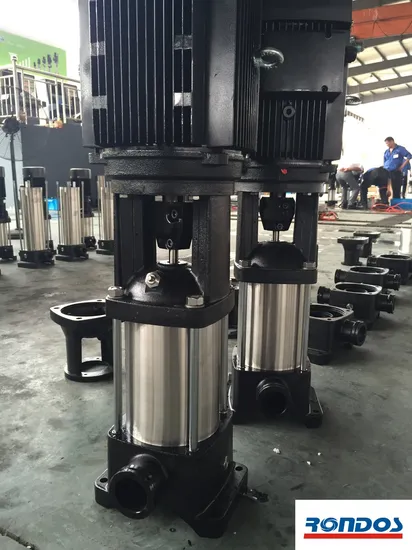

Vertical Multistage Pump (Cr, CRI, Crn) , High Pressure Jockey Booster Pump, Fire Pump, Pipeline Pump
| US$95.00-6,200.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
SDL, CDL, CDLF
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Multistage Pump
Working Pressure
Middle Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pumps
Transport Package
Carton, Polywood Box
Specification
CE
Trademark
Rondos
Origin
Zhejiang Hangzhou
Production Capacity
100000PCS/Year
Product Description
Product features:1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºCto +70ºC hot water type +70ºC to +115ºC.
3. Flow range 0.4m3/h~240m3/h, head range 103m~305m.
4. Model range SDL1,2,3,4,5,8,10,12,15,16,20,32,45,64,90,120,150,200.
5. Different material type CI, SS304, SS316L, Duplex all available. SDL is stainless steel type, SDLT is cast iron type.
6. The environment temperature: +40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
9. IP55, F class.
10.Single phase up to 2.2kw.
11.Standard color is black.Electrophoretic paint.
12.Cartridge mechanical seal, standard type is graphite/carbide tungsten, viton.
| Model | SDL1 | SDL2 | SDL3 | SDL4 | SDL5 | SDL8 |
| rated flow. m3/h | 1 | 2 | 3 | 4 | 5 | 8 |
| Max.head. m | 214 | 232 | 218 | 211 | 232 | 208 |
| Model | SDL10 | SDL12 | SDL15 | SDL16 | SDL20 | SDL32 |
| rated flow. m3/h | 10 | 12 | 15 | 16 | 20 | 32 |
| Max.head. m | 222 | 217 | 227 | 222 | 234 | 292 |
| Model | SDL45 | SDL64 | SDL90 | SDL120 | SDL150 | SDL200 |
| rated flow. m3/h | 45 | 64 | 90 | 120 | 150 | 200 |
| Max.head. m | 305 | 215 | 168 | 162.5 | 157 | 157.5 |
