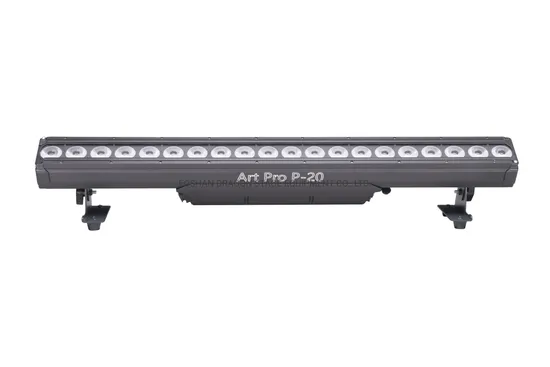

Dragonstage Art PRO Series Pixel 20 Bar Fusion2 Fs-20 Pixel Bar Outdoor LED Linear Lighting
Basic Info.
Model NO.
stage light
IP Rating
IP65
Diffuser
Polycarbonate
Beam Angle
6
Lifespan
50000 hours
Warranty
2 Years
Electric Current Type
AC
Input Voltage
220V
Transport Package
Box
Specification
1270x320x220mm
Trademark
Dragon Stage
Origin
Guangdong Guangzhou, China(Mainland)
Packaging & Delivery
Package Size
1270.00cm * 320.00cm * 220.00cm
Package Gross Weight
9.500kg
Product Description
dragonstage Art Pro Series Pixel 20 Bar Fusion2 FS-20 PIXEL BAR outdoor led linear lightingProduct Description
Specification
| item | value |
| Color Temperature(CCT) | 4100K (Neutral White) |
| Lamp Luminous Efficiency(lm/w) | 130 |
| Color Rendering Index(Ra) | 90 |
| Support Dimmer | Yes |
| Lighting solutions service | Lighting and circuitry design, Project Installation |
| Lifespan (hours) | 50000 |
| Working Time (hours) | 50000 |
| Product Weight(kg) | 9.5 |
| Type | Beam Lights |
| Input Voltage(V) | 100-240V - 50/60Hz |
| Lamp Luminous Flux(lm) | >10000lm |
| CRI (Ra>) | 90 |
| Working Temperature(ºC) | |
| Working Lifetime(Hour) | 100000 |
| IP Rating | 65 |
| Place of Origin | China |
| Guangdong | |
| Brand Name | Dragonstage |
| Emitting Color | 20 x 15W RGBW 4in1 |
| Application | Theme Park |
| Light Source | Halogen Bulbs |
| Warranty(Year) | 2-Year |
| Application | Club.stage |
| Product name | Modern Linear Lighting |
| Feature | Easy Installation |
| Keyword | outdoor linear lighting |
| Name | modern led linear lighting |
| Control mode | DMX, Auto, Master-slave |
| LED Light Source | 20 x 15W RGBW 4in1 |
| Power | 400W |
| Package | 1270x320x220mm |
| Light style | Pixel-mapping, Multi-layer, dynamic patterns |
Power supply: 100-240V - 50/60Hz
Power consumption: 400W
LED power: 300W
LED source: 20 x 15W RGBW 4in1
Optic: High efficiency optic system
Effect: 80.Pixel Control RGBW
Luminous flux: >10000lm
Field angle: 6° (optional 8°,12°, 15°, 25°, 45°)
Dimmer mode: 8&16 Bit
Dimmer curve: Linear, curve
DMX mode: 11,27,80,91CH
Control mode: DMX, Auto, Master-slave
Protocol: DMX, RDM
Light style: Pixel-mapping, Multi-layer, dynamic patterns
Structure
IP rating: 65
Body: Die-cast aluminum
Free light CON: Yes
Stand CON: 2 Max.
Hang drop CON: 4 Max.
Rotation 360: Yes
Working Condition: -30° ~ 70°C
Connection
Power: True1 in & out
DMX: 3pin DMX in & out
Power cable: CCC 2.5mm2, 8 power link Max
Power and DMX cable type: Customized
Box Info
- Quick lock omega brackets
- Safety cable
- Floor stand
- Power & DMX cables
Carton: 2 in 1, Case: 4 in 1 or 8 in 1
Light: L1004 x W96 x H130(Bracket H178) mm
Carton size(2in1): 1270x320x220mm
Light Net Weight: 9.5KG (Gross 2in1 22.5KG)
Optional Accessories
- PMMA froster
- PMMA cover
- Barndoor
- Infinite rotation engine
- Clamp
- Flight case
