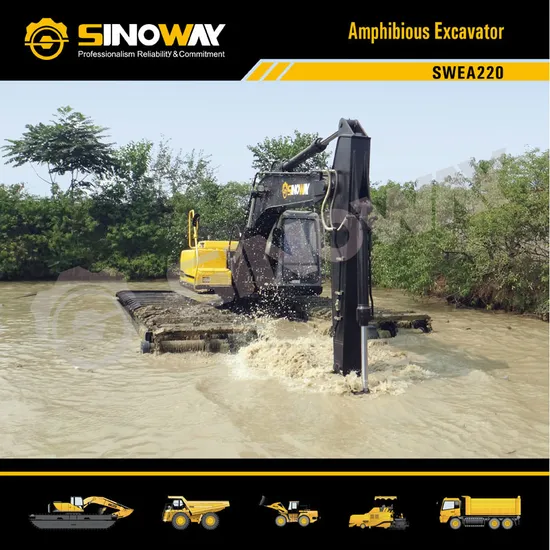

Hot Sale 30 Ton Amphibious Excavator for River Dredging and Swamp Construction
| US$140,000.00-159,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SWEA220
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000, ISO14001
Condition
New
Engine Power
155HP
Hydraulic System
Doosan
Max. Reach
10.2 M
Chain Number
Three Strands
Track Shoe
Bolted
Pontoon Width
1.8 M
Pontoon Length
10 M
Pontoon Height
1.84 M
Painting
Epoxy Painting
Manhole
Optional
Side Pontoons
Optional
Hydraulic Spud Piles
Optional
Total Weight
30 Ton
Transport Package
Standard Export Packing
Specification
ISO
Trademark
SINOWAY
Origin
China
HS Code
84294090
Production Capacity
50PCS/Month
Product Description
An amphibious excavator, also known as a marsh buggy, is an excavator specifically designed to manoeuvre in marshes, swampy areas and soft terrain, as well as to float on water.
All Sinoway product development is achieved by advanced designing software. Designs are simulated through a state-of-the-art FEA program, ensuring design integrity and increased field reliability. Each pontoon of Sinoway has 2 bulk heads with 3 water tight compartments which are hermetically sealed. The pontoon is designed with sufficient displacement applying Archimedes' Principle to ensure the entire amphibious excavator is able to float on water as a safety feature. Each pontoon comes with manholes for easy access to its interior for servicing & maintenance.
Supplementary pontoons can be added on each side to boost stability in deeper water operation.
Spud piles attach to supplementary pontoons help to overcome buoyancy effect, it offers added stability and enhanced operability.
Sinoway track shoe is supported by 2 or 3 strands of track chain offers the advantage of uniform pulling force and superior weight distribution across each track shoe. The track shoe is reinforced box design, enhancing the floating capability. Each sprocket of Sinoway is bolted onto the axel which can be easily replaced individually.
Modular desige of our swamp excavator can be easily assembly and disassembly in working site.
Sinoway also can make custom amphibious equipment according to your actua requirement and the project request.
Machine Show
Machine Introduction
Specifications
| Engine | |
| Model | Doosan/Deutz/Cummins |
| Type | Six-cylinder,water-cooled turbocharged,mechanical injection |
| Rated power | 115KW |
| Rated speed | 2100rpm |
| Main Technical Specification | |
| Operating weight | 30000Kg |
| Standard bucket capacity | 0.9m3 |
| Slewing speed 11rpm | 11rpm |
| Stick digging force | 110KN |
| Bucket digging force | 150KN |
| Hydraulic System | |
| Main pump | KAWASAKI |
| Main valve | KAWASAKI |
| Motor | KAWASAKI |
| Hydraulic flow rate | 2x235L/min |
| Hydraulic pressure | 32MPa |
| Travelling System | |
| Travelling speed | 0~5.4km/h |
| Grade ability | 65% |
| Ground pressure | 0.0135MPa |
| No. of chains | 3 |
| Dimensions | |
| Overall length | 12100mm |
| Overall width | 6000mm |
| Overall height | 3900mm |
| Ground clearance | 1192mm |
| Length of pontoon | 10200mm |
| Width of pontoon | 1760mm |
| Height of pontoon | 1700mm |
| Operating Scope | |
| Stick length | 3000mm |
| A: Max. cutting height | 10980mm |
| B: Max. dumping height | 8140mm |
| C: Max. digging depth | 6940mm |
| D: Max. reach | 10290mm |
