5L-10L Pet Bottle Semiautomatic Blow/Blowing Molding/Moulding Plastic Machinery/Machine with CE

Product Description

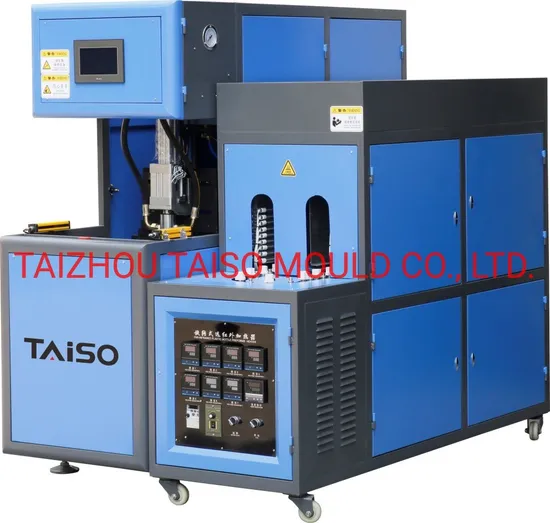

TS-5L Semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely.
Features
1. Produce bottle from 2L to 5L bottles
2. Output capacity up to 300 bottles/hour for 5L using one cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.

Model	TS-5L (1 Blower & 1 Heater)
Max. Volume	6L
Output	300-600BPH
Number of Cavities	1 & 2 Cavity
Neck diameter	18-120mm
Max. diameter	180mm
Max. Bottle height	380mm
Mold thickness	100-280mm
Clamping stroke	220mm
Rated power	15kw
Power consumption	4-8kw
Blower size	1900*620*1650mm
Heater size	1700*600*1350mm
Weight	1000kgs
