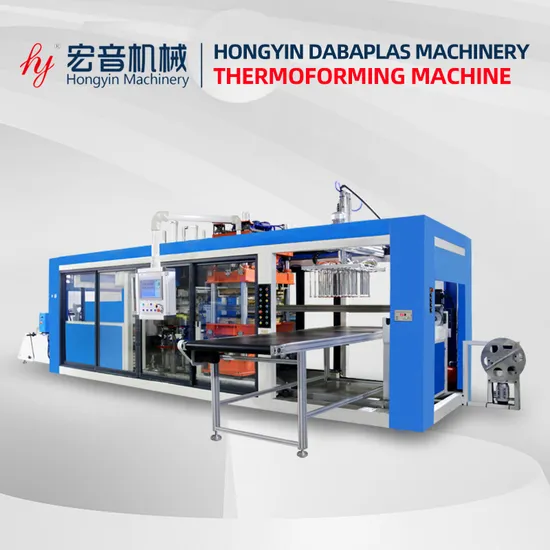

Multi Station Automatic High Speed Plastic Vacuum Forming Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
DB-72/76
Raw Material
PP, PVC, Pet, PS, HIPS
Shaping Mode
On Molding
Application
Machinery & Hardware, Food & Beverage, Medical, Toys, Chemical, Plastic Box/Bowl/Tray/Lid/Container
Driven Type
Electric
Computerized
Computerized
Certification
CE
Max. Forming Area
720*850mm
Thickness of Sheet
0.2-1.5mm
Max. Forming Depth
80mm
Power Supply
AC 380V, 50/60 Hz
Dimension
L9200*W2850*H2660mm
Transport Package
Wooden Case
Specification
720*760mm
Trademark
HongYin
Origin
Ruian
HS Code
847780000
Product Description
Application Area:
This machine is suitable for forming HIPS, PS, PP, PVC, PET, sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, egg tray, mobile phone tray & other blister tray.
Technological process
Carrying material(cylinder drives the chain to work)---heating(cylinder drives the electric furnace to lift in order to make a proof)---pulling( cylinder drives the chain)----lifting the lower die, falling the upper die(cylinder drives)-vacuum forming(vacuum pump air admission )---cooling(gas drives the spray gun to work, electric machinery drives the air blowing)----drawing of patterns(gas drives)---pulling-cutting---stacking on the line ,
Main Technical Parameters:
| Max Forming area | 720*850mm |
| Material | PET,APET,PP,PS,PVC,ABS |
| Material thickness | 0.2-1.8mm |
| Forming height | 0-80mm |
| Production speed | 200-600times/hour |
| Mould-up times | 1 or 2 times(free to install) |
| Mould-up move | Electromotion |
| Eject-die | Shake to mould-down |
| Overall power consumption | 25kw/hr |
| Vacuum pump power | 4.0 KW/150m³ |
| Servo motor | 3kw |
| Power | 380V 50HZ |
| Air consumption | 6.5kg/cm 1000-1500Liter /min |
| Chiller power | 3HP |
| Overall diameter | (L)9200*(W)2850*(H)2660mm |
| Weight | 9200kg |
