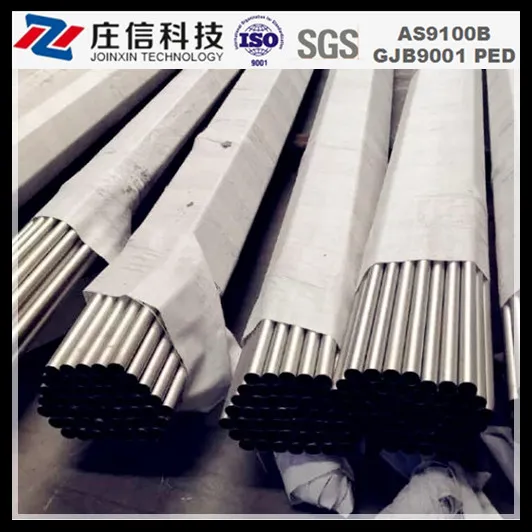

China Factory Price Gr1 Gr2 Gr5 Titanium Alloy Cp Titanium Pipe
| US$15.00-65.00 | 100 kg (MOQ) |
Basic Info.
Model NO.
titanium pipe
Surface
Pickled, Polished Surface
Type
Titanium Pipes
Application
Industrial
Technique
Cold Rolled
Grade
Gr1 Gr2 Gr5
Transport Package
Wooden Box
Specification
Customized
Trademark
ZX. TIG
Origin
Shaanxi, China
HS Code
8108904010
Production Capacity
60000t/a
Product Description
China Factory Price Gr1 Gr2 Gr5 Titanium Alloy or CP Titanium PipeSpecifications of Titanium Seamless and Welded Tubing
| Category | Process | Outer Diameter | Wall Thickness | Length | Grades |
| Titanium Seamless Tube /Pipe | Hot Extruded | 25-210mm | 4-30mm | Customized | Gr1 Gr2 Gr3 Gr5 Gr7 Gr9 Gr11 Gr12 |
| Cold-rolled | 1.5-80mm | 0.2-5.5mm | Customized | ||
| Titanium Welded Tube/Pipe | Welded | 10-38mm | 0.5-2.1mm | Customized |
We provide following tests for Ti seamless and welded tubes
| Chemical Composition | Visual Inspect | Ultrasonic Testing | Current Testing |
| Flattening Testing | Flattening Testing | Pneumatic Test | Hydrostatic Test |
| Tensile | Yield | Hardness | Elongation |
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | Bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |
Tensile Requirements
| Grade | Elongation(%) | Tensile Strength (Min) | Yield Strength (Min) | ||
| ksi | Mpa | ksi | Mpa | ||
| Gr1 | 24 | 35 | 240 | 20 | 138 |
| Gr2 | 20 | 50 | 345 | 40 | 275 |
| Gr3 | 18 | 65 | 450 | 55 | 380 |
| Gr4 | 15 | 80 | 550 | 70 | 483 |
| Gr5 | 10 | 130 | 895 | 120 | 828 |
| Gr7 | 20 | 50 | 345 | 40 | 275 |
| Gr9 | 15 | 90 | 620 | 70 | 438 |
| Gr12 | 18 | 70 | 438 | 50 | 345 |
Applications of Titanium Pipe / Titanium Tube: Marine Industry Chemical and petrochemical industry Pulp and paper industry Sporting goods - golf shafts, bicycle frames, etc. Medical industry Nuclear industry Titanium Products
| Product name | Specification |
| Titanium Ingots | Ф360mm~Ф1020mm,the maximum weight is up to 12t |
| Titanium Slab | (80~400)mm×(~1500)mm×(~2600)mm |
| Titanium Forgings | Weight per piece≤2000kg |
| Titanium Hot-rolled plates | (4~100)mm×(800~2600)mm×(2000~12000)mm |
| Titanium Cold-rolled plates | (0.01~4.0)mm×(800~1560)mm×( ~6000) mm |
| Titanium Strips | (0.01~2.0)mm×(800~1560)mm×L |
| Titanium Tubes / Pipes | Ф(3~114)mm×( 0.2~5)mm × (~15000)mm |
Titanium Grade | ·GR1, GR2, GR3, GR5, GR7, Gr9, Gr11, GR12 ·BT1-00,BT1-0,BT1-2 BT6 BT5-1 3B BT6c ·TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4 |
| Category | Material | Dimension(mm) | Specification |
| Titanium & Alloy ingots & bars | CP Ti, Ti-6Al-4V, Ti-6Al-4V Eli, Ti-3Al-2.5V, Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli, Ti-0.05Pd, Ti-0.2Pd, Ti-6Al-7Nb, Ti-13Nb-13Zr, Ti-0.1Ru, Ti-3Al-8V-6Cr-4Mo-4Zr, Ti-6Al-4V-0.1Ru, Etc. | Standard or customized | GB/T 2965, ASTM B348 |
| Titanium & Alloy castings | GB/T 6614, ASTM B367 | ||
| Titanium & Alloy forgings | GB/T 25137, ASTM B381 | ||
| Titanium & Alloy plates | GB/T 3621, ASTM B265 | ||
| Titanium & Alloy strips & foils | GB/T 3622, ASTM B265 | ||
| Cold rolled Titanium & Alloy strip coils | GB/T 26723, ASTM B265 | ||
| Titanium & Alloy wires | GB/T 3623, ASTM B863 | ||
| Titanium & Alloy seamless tubes | GB/T 3624, ASTM B861 | ||
| Titanium & Alloy welded tubes | GB/T 26057, ASTM B862 | ||
| PM Titanium & Alloy components | GB/T 6887, ASTM B817 |
Titanium Production Process
Titanium Production Equipment
About Us
Why Choose Us? 53 years of titanium R&D and production experience Our products have been exported to more than 30 countries all round the world State-owned company with great credit and strong financial strength Competitive price,best service, strict quality control system and on-time delivery Related Supply Chain Service Contact us
XI'AN JOINXIN NEW MATERIAL TECHNOLOGY CO.,LTD
Factory Address: 22nd Floor, Kerry B, Wei Yang Dist., Xi'an 710018, PRC.
