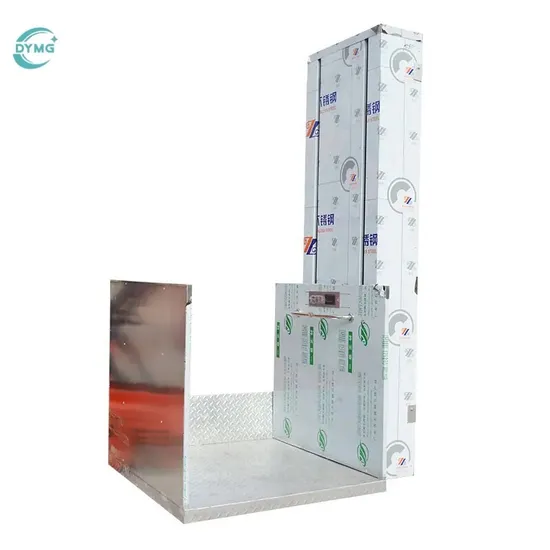

Electric Hydraulic Small Home Wheelchair Lift Tables Vertical Platform Lifts

Product Description

Product Description
DYMG LIFT wheelchair lift, also referred to as handicap lift, is built to provide convenient, easy and reliable wheelchair access up and down, in and out of a private residence such as garage, basement, exterior deck, front porch, as well as commercial places like libraries, cinemas, banks, hotels, and hospitals.

Model Type	DYMG 2510	DYMG 2515	DYMG 2520	DYMG 2525	DYMG 2530	DYMG 2535	DYMG 2540	DYMG 2550	DYMG 2560
Max. Platform Height (mm)	1000	1500	2000	2500	3000	3500	4000	5000	6000
Load Capacity (kg)	250	250	250	250	250	250	250	250	250
N.W/G.W (kg)	350/450	450/550	550/700	700/850	780/900	850/1000	880/1050	1000/1200	1100/1300
Machine Size(m)	2*1.430*1.3	2.5*1.43*1.3	3*1.43*1	3.5*1.43*1	4*1.43*1	4.6*1.43*1	5.1*1.43*1	6.1*1.43*1	7.1*1.43*1
Packing Size (m)	2.2*1.6*1.6	2.6*1.6*1.6	2.8*1.6*1.6	3.1*1.6*1.6	3.3*1.6*1.6	3.6*1.6*1.6	3.8*1.6*1.6	4.3*1.6*1.6	4.8*1.6*1.6

Product Parameters

Product name	Home elevator
Platform size	1400(L)*900(W)mm
Minimum platform height	60mm(above ground)
Maximum lifting height	1000-6000mm(custom)
Entry&Exit Mode	0°/90°/180°
Lifting speed	70mm/s
Load capacity	250kg
Control source	24V/DC
Motor power	1.5KW
Power supply	220V/50HZ
Drive system	Hydraulic driven
Running mode	Jogging control or seated lifting range
Installation mode	No pit,installed to the concrete ground directly
Extron control device	The panel boxes are placed next to the entrance on the above/below floor

Detailed Photos


Main Features
The wheelchair platform lift consists of a body tower, an upper landing gate, a platform mounted gate, a hydraulic drive system and panel controls. Suitable for indoor and outdoor use.

• Covered with Powder-painting steel or stainless steel.
• Emergency down incase of power failure.
• Control panel & Safety door on second floor.
• Safety sensor on bottom of platform, lift will automatic stops once it meet obstacle.
• Emergency stop: lifting and lowering process can be stopped immediately.

Company Profile
Shandong Jinan DYMG Co., Ltd. is a professional manufacturer of hydraulic lifting platform in China. Our factory has advanced production equipment, strong technical force, advanced and reasonable technological process, complete detection means. The hydraulic pump station system of Italy and Germany, explosion-proof device and hydraulic self-locking device of Italian hydraulic system are selected. The utility model has the advantages of novel design, reasonable structure, stable lifting, simple operation, convenient maintenance, etc., which can not be replaced by other products. Widely used in plant maintenance, industrial installation, equipment overhaul, property management, warehouse, aviation, airport, port, station, machinery, chemical, pharmaceutical, electronic, electric and other high-altitude equipment installation and overhaul.
The main products of the company are scissor lift, aluminum alloy mast lift, boom lift, car lift, mobile ramp and dock leveller. All products of the company are in line with national industry standards. We have been sold to over 150 countries.
Quality and service, in our view, is no longer just an economic indicator, but also a humanistic indicator. We are committed to highlighting product quality, value and service characteristics, so that the good relationship between us and our customers can be sustained development. The market is full of competition, but paying attention to sincerity and cooperation is the premise of development. When problems arise, we hope with sincerity and cooperation Fair and reasonable consultation, quality and service, and sincere cooperation have made our achievements and won our reputation.
No matter where you are, we will have professional and technical personnel to serve you, your satisfaction is our commitment!
What we offer: 1) Good quality control 2) Highly competitive prices 3) state-of-art technology products 4) Smooth communication 5) Effective OEM&ODM service
Packaging & Shipping

FAQ
1.Q:How about your delivery time?
A: Lead time 5 days for in stock, If need customized, it will take about 15 working days.
2.Q:Why should I buy from you not from other suppliers?
A:We are professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using. We are a large-scale lifting platform manufacturing enterprise integrating R&D, production and sales.
3.Q:How long is your product warranty?
A:The product warranty period is 24 months.
4.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.
