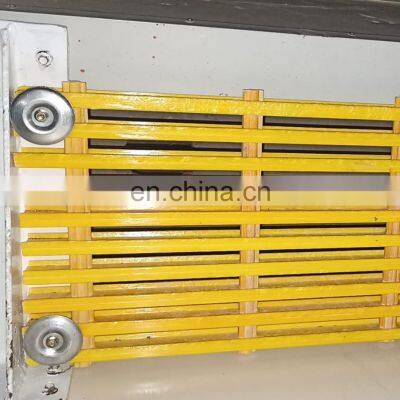

High Strength FRP Pultruded Fiberglass Bar Grate Pultruded Fiberglass FRP Walkway Grating

Product Description

Product Description
Product DescriptionHigh Strength FRP Pultruded Fiberglass Bar Grate Pultruded Fiberglass FRP Walkway Grating Pultruded Fiberglass Grating is the ideal solution for platforms, ramps, stairs, and more. This grating is slip-resistant,non-conductive, strong, lightweight, and corrosive resistant which makes it ideal for many industries.Pultruded FRP Resin System OptionsPultruded Grating is available in two resin formulations for an accurate match of product characteristics with the application.Both resin systems provide corrosion resistance that is superior to that offered by metal grating. * Isophthalic Polyester (Type I): Isophthalic polyester resin formulation with a low flame spread rating of 25 or less designed for applications where there is moderate exposure to corrosive elements. (DNV Type Approval). * Vinyl Ester (Type V): Vinyl ester resin system with a flame spread of 25 or less for dependable resistance to both acidic and alkaline environments. * Phenolic (Type P): A Coast Guard approved flame-resistant phenolic resin with an extremely low flame spread of 5 or less and a smoke index of 45 or less – designed primarily for the offshore industry. (Coast Guard approved for Level 2 performance criteria – DNV Type Approval Certificate ABS Product Type Approval).Our pultruded FRP range includes several standard widths that fit common platform dimensions (including 24”, 36” and 40” and 48”). We offer a range of lengths that can be used as-is or cut down using simple hand tools for your installation. If necessary, we can also offer custom solutions that are based on your drawings, blueprints or print takeoffs.Pultruded FRP Grates offer higher strength characteristics and are ideally suited for heavier loads across longer spans than molded grating. The composite matrix of pultruded grating utilizes a higher fiberglass content to resin ratio resulting in a stiffer grate but with less corrosion resistance. Pultruded grating is a unidirectional structure and being an assembled product, allows for larger panel sizes for better utilization.Load Bars: Pultruded grates are constructed of a series of independent load bars with either an "I" or "T" profile. "I" bars are typically used for industrial applications having a higher load capability"T" bars are typically used for pedestrian applications having a wider walking surface.Open area between the load bars can be as high as 60% or as small as 12% depending on your application and loading.SpecificationType Height(mm)Top edge width (mm)Space between (mm)Clearance width(mm)Open area(%)Estimated weight kg/m2I-4010251525104017.8I-5010251530155015.1I-6010A251538236012.2I-6010B25819.811.86013.7I-4015381525104022I-5015381530155019.1I-6015381538236016.2I-4012301525104019.1I-5012301530155016.1I-6012301538236013.1I-40125321525104028.5I-50125321530155024.2I-60125321538236020.1I-4020501525104028.5I-5020501530155024.2I-6020501538236020.1Details ImagesFiberglass grating manufacturer FRP/GRP composite pultruded and molded gratings show After-sales service1.Provide install video if necessary and other install documents2.Quality guarantee is 1 year. 3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.Packing&ShippingRelated Products1, high quanlity and best price Our company is Professional manufacturer , cheap price and guaranteed quality. we can do the test as your required , such as SGS, ISO and so on. 2, Accept customized, Our company accept customized, if our catalog don't the size you need, is doesn't matter, we can according your required to produce it. 3, Best serviceAnswering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business. I think you will satisfy with our service. Give us your PO, let us cooperation for a long time.
