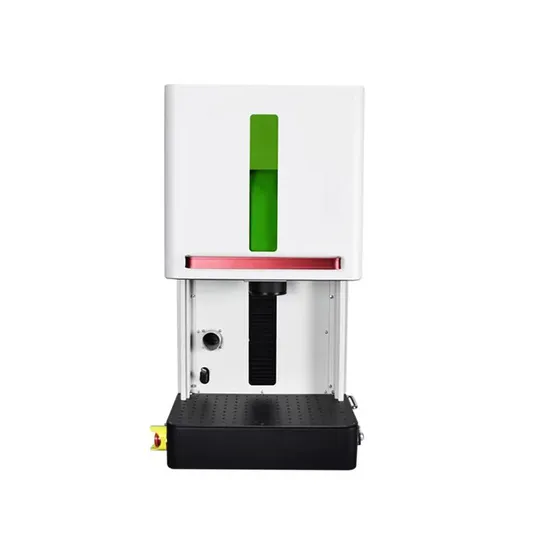

20W CNC Fiber Laser Marking Machine

Product Description

20W CNC fiber laser marking machine
Instruction:
The mini enclosed desktop laser marking machine is a compact and efficient marking solution designed for precision and safety. Its fully enclosed structure ensures protection from laser radiation while minimizing noise and dust, making it ideal for use in small workshops, laboratories, or office environments.
This machine combines functionality with portability, making it an excellent choice for businesses seeking cost-effective and reliable marking solutions.
Product Parameters
Main Parameter:

Machine model	OM-FP20D
Laser source	20W Raycus (MAX, JPT, IPG optional)
Marking area	110*110mm (150*150mm, 200*200mm, 300*300mm optional)
Rotary	Optional
Computer	Optional
Double red dot position	Including
Laser Wavelength	1064nm
Response time	0.5ms
Frequency of pulse	20-100KHz
Marking depth	≤0.4mm
Marking speed	≤7000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.15mm
Repeatability accuracy	±0.001mm
Laser Lens	Sino or Huaying lens
Cooling system	air cooling, very convenient
Certificate	With CE & FDA Certificate
Operation system	Microsoft Windows10/7 / XP, etc
Supply Voltage	110/220V/50HZ or 60HZ

Detailed Photos
Key features include:
1. Compact Design: Small footprint, perfect for limited spaces.
2. High Precision: Delivers accurate and detailed markings on various materials.
3. User-Friendly Operation: Equipped with an intuitive control panel and advanced software for ease of use.
4. Safety Features: Fully enclosed design with a viewing window to ensure operator safety.
5. Versatile Application: Suitable for marking metals, plastics, ceramics, and more, across industries such as electronics, jewelry, medical devices, and automotive.
Advantages of the Mini Enclosed Desktop Laser Marking Machine:
1. Excellent Beam Quality: Ensures precise and high-resolution marking.
2. High Efficiency: Optimized for fast and accurate operation.
3. Long Lifespan: Designed with durable components for extended service life.
4. Maintenance-Free: Operates without requiring regular maintenance, saving time and costs.
5. Compact Size: Small and portable, fitting easily into tight workspaces.
6. Consumable-Free: No need for inks or other consumables, reducing operational expenses.
7. Low Power Consumption: Energy-efficient design minimizes electricity use.
8. Zero Running Costs: Operates without ongoing expenses, maximizing cost-effectiveness.
Main Parts: 1. Fiber Laser Source: MAX brand with over 100,000 hours lifespan. Raycus, IPG, and JPT options are available.
2. Control Board: Designed for ease of operation, user-friendly for all operators.
3. F-Theta Lens: Offers stability with wavelength-specific options (Sino or Huayuan), and a choice of field sizes: 110mm, 150mm, 200mm, and 300mm.
4. Galvanometer Scanning Lens: Provides high-speed scanning (<0.7ms) with precision marking capabilities.
5. Industrial-Grade Extended Optical Path: Reinforces linear optical stability for consistent laser output.
6. Double Red Dot Positioning: Facilitates fast and easy focal length adjustment.
7. Control System: EZCAD, known for its stable performance and reliability, simplifies complex functions to ensure high operational stability.
8. Software: English version is standard, and other language versions are available upon request.
Optional Components:
Rotary Options:
Ring Marking Model: Specifically designed for marking on rings.
Standard Model: Available with 50mm and 80mm diameter options, suitable for broader marking applications.
Application of Laser Ring Engraving Machine:
The fiber laser marking machine is versatile, handling both metals and select non-metals with precision:
Metals: Ideal for engraving gold, silver, stainless steel, brass, aluminum, steel, iron, and more. Non-Metals: Suitable for marking materials like ABS, nylon, PES, PVC, and Makrolon. This flexibility makes it perfect for a variety of applications in both industrial and decorative contexts.

Packaging & Shipping
Package and Delivery:
1. Anti-Collision Protection: Each part of the machine is cushioned with soft, shock-absorbent materials, primarily pearl wool, to protect against impact.
2. Full-Film Wrapping: The machine is completely wrapped in film to prevent moisture and dust exposure.
3. Fumigated Wooden Crate: The crate is treated to ensure safe, compliant shipping.
4. Reinforced Iron Base: A solid iron base is built into the wooden crate for stable support and easy handling during transport.
Packing List:1. Protective Goggles - Essential for eye protection during operation.
2. Power Cable - Supplies power to the machine.
3. Foot Switch - Enables hands-free operation control.
4. Flash Drive - Includes software and English user manual.
5. Positioning Bars - Helps accurately position materials.
6. Tool Set - Basic tools for maintenance and adjustments.
7. Laser Test Paper - For testing laser precision and output.
8. Spare Buttons - Replacement buttons for quick repairs. After Sales Service
Warranty and After-Sales Service:
1. Warranty Period: 2 years for the entire machine and 2 years for the fiber laser source.
2. Lifelong Technical Support: Available online or via email.
3. 24/7 Online Assistance: Our team is ready to help you effectively use our machine at any time.
4. Overseas Support: We offer training, installation, and operational assistance if needed.
5. Free Training at Our Facility: You are welcome to visit us for hands-on training.
6. Certification: Our machines are produced in compliance with CE and FDA standards.
Customer Feedback:
Certifications
Certifications:
FAQ:
1. How long is the delivery time?
For standard machines, the manufacturing time is approximately 5-7 days. Sea transportation typically takes 20-40 days, depending on your local seaport. If you prefer a faster option, the machine is small enough to be sent via express or air transportation, which takes about 10 days.
2. How do I make a payment?
Once we confirm the configuration you need, we will provide an invoice for your reference. You can then take this invoice to your bank for a wire transfer.
3. Have you arranged the delivery of the machines?
Yes, we can handle various shipping terms including EXW, FOB, CIF, and DDP.
EXW: Your shipping company picks up the machine from our factory.
FOB: We deliver the machine to your shipping company's warehouse in China.
CIF: We use our shipping company to send the machine to your local seaport for pickup.
DDP: We deliver the machine directly to your door. 4. Do you offer more models?
Yes, we have a wide range of models. If you don't find what you need, please let us know; we can customize a solution to meet your requirements.
5. Is it easy to operate the machine?
We provide English manuals and instructional videos to help you operate the machine. If you still have questions, we can assist you using "TeamViewer" for online support, or we can communicate via phone, email, or other methods.
