Single Head Hand Polishing Machine for Marble Granite Surface

Product Description

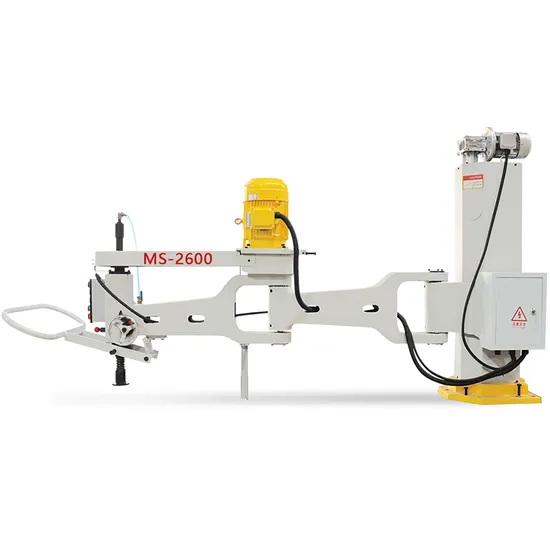

Single Head Hand Polishing Machine for Marble Granite Surface MS-2600 Polishing MachineThis machine uses round column as its guide slip surface for steady automatic ups and downs. Two optional main drive motors (single speed and dual speeds) are upon the client's choice. It is applicable to surface grinding and polishing of granite and marble. especially for tombstones, slabs and mosaic.
Available for Arc slab polishing as well if assorted with table.
Configurations:
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Strong cast iron HT200.
4.Touch sensitive Panel Easy for worker to operate.
5. 8-9 sqm per hour for medium hard marble with 20-30mm thicknesss.
Technical Parameters

Model		MS-2600
Gyro radius	mm	2600
Range of vertical stroke	mm	0-800
Grinding wheel diameter	mm	220
Overall dimensions (L x W x H)	mm	3500 x 650 x 1700
Main motor power	kw	5.5
Water consumption	m³/h	3
Approximate weight	kg	850
