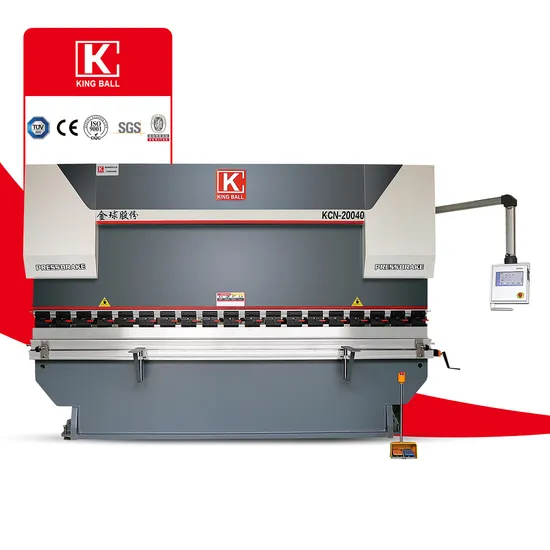

100ton Power Hydraulic CNC Tarsion Bar Press Brake with E300 Controller

Product Description

Product Description
Product Parameters

Torsion Bar Press Brake			KCN-6325	KCN-10032	KCN-16032
Capacity		kN	630	1000	1600
Max. Bending Length		mm	2500	3200	3200
Between Columns		mm	2100	2600	2600
Max. Shut Height		mm	350	410	450
Slide Stroke		mm	120	150	200
Throat Depth		mm	250	320	320
Down Speed		mm/min	120	100	100
Pressing Speed		mm/min	10	10	10
Return Speed		mm/min	90	90	90
Main Motor Power		kW	5.5	7.5	11
X axis stroke		mm	500	500	500
Outline Size	L	mm	3000	3700	3700
	W	mm	1500	1750	1870
	H	mm	2200	2400	2800
Weight		kg	4000	6800	9600

Detailed Photos
Company Profile
Certifications
Packaging & Shipping
After Sales Service Our Service
Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery
overseas
Contact Ways Ms. yulia Chen Customer Manager E-mai:yulia@jinqiu.cc FAQ 1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For machine in stock, the lead time is within one week.For mass production, the lead time is 20-35 working days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
