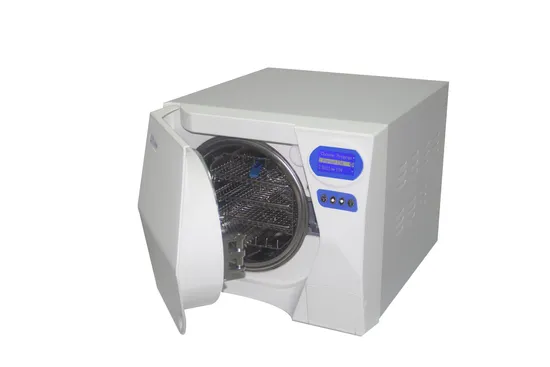

Table Top High Pressure Steam Sterilizer Autoclave (23L)

Product Description

Specifications
1. According with EN13060
2. Have certificate of CE, ISO13485
3. English language only
4. Full automatic operations
Pre-vacuum steam autoclave B+ series type
1. New type of separte steam gentator
2. Multi-languages to choose and convenient for the dentist.
3. The temperature accurate to the first decimal place, the pressure accurate to the second decimal place.
4. Have very detail print. Can make the record of monitoring temperature and pressure per 6 seconds.
5. Automatic,multi-protections and safety door lock system.
6. can make some data adjustments on programs to let the sterilization results more better
7. USB and internal printer to record the cycle information in detail
Safety Devices:
a. Over heat control: When inner temperature is overheated, power will be shut down
automatically and alarm system
b. Over pressure control: it has alarm system when over pressure.
c. Safety door lock system
d. Low water level indictor: It has alarm system when low water

Warranty: 2 years warranty time ! during this period, we will supply you free parts for maintenance if necessary ! out of date you should bear the freight and spare parts cost ! of course we will support you technical service for lifetime !

After service:
Please contact with the telephone and emails at any time.

Because of the time difference, therefore, sending Email is the best and convenient way to contact us. Upon receipt of your e-mail, we give you reply immediately, offering solutions to equipment failures. Tonsor will extend the greatest effort to help your getting spare parts, speeding up your feed-back to customer demand.

QC:
100% inspection and random check on the parts and machine, ensure 100% products with high quality.

Package: 1PCS/CTN
14L : 67 x 58x 48 CM
17L : 67 x 58 x 48 CM
23L: 79 x 58 x 48 CM


Transportation: by air, by sea, by express if you like . as my experience, for sample order, under 3 units, you can choose to delivery by DHL, it is more convenient and faster than other 2 ways ! but it will be much more expensive than others !

Delivery time : we can delivery your machines within 4 days after receiving your payment if under 5 units !

Model	T& S 14B+	T& S17B+	T& S23B+
Chamber dimension(mm)(Φ × D)	250x270	250x380	250x500
Chamber Capacity(Liter)	14L	17L	23L
Overall size(cm)(L× W× H)	48x 48x52	48x 56x52	48x67x42
Heater	1600W	1800W	2000W
Net Weight(KGS)	42	46.5	56
Gross Weight(KGS)	50	55	65
Packing size(cm)	68x 60x 50	73x60x50	87x 60x 50
Minimum desk size(cm)	48x35	48x42	48x 52
Power supply	220± 10%, 50/60HZ, 10A
Sterilize	Temperature 134/121
Sterilize time	Refer to different program
Dry procedure	Vacum drying
Sterilizer construction	Stainless steel 304
Water tank	internal
Stainless steel instrument container	5trays
