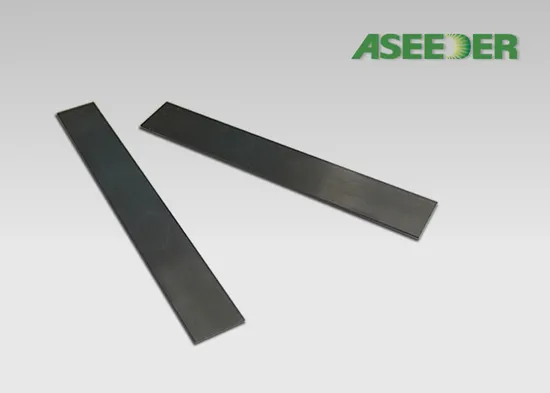

Yg3/Yg6/Yg8/Yg10/Yg12 Flat Strips Tungsten Carbide Strips for Machine Tools

Product Description

We are able to product all types of tungsten carbide parts based on customer's requirement, machining and hardfacing service also avaible, if below items not meet your requirement please feel free to contact us for OEM service.
Tungsten Carbide Strip and Plate Blanks In Any Size Availble
Tungsten Carbide Plate & Strip Features:
High stability, long lifespan circle. Customized as your requirements. Approved factory for oil and natural gas industry TOP5 customers. With ASP9100 certificate , API certificate, ISO9001:2015 With a Special Thread Processing Workshop Tungsten Carbide plates Application: Main used for machining copper sheet, stainless steel, SPCC, silicon steel sheet, also used for stampling die for electronic connector, LED lead frame, Electric motor rotor.
Some size of tungsten carbide plates in K10, K20, K30, K40:
125x65xT1.5-15 mm
105x105xT6.0-70 mm
150x150xT20-70 mm
205x205xT15-45 mm
255x255xT15-35 mm
300x300xT15-30 mm
Also we many other different sizes of plates, like 50x50xT, 100x100xT, 120x120xT........, in addition, we can do customized size, simply you can find the plates from us in size width 1-300 mm x Depth 1-300 mm x Thickness 1-300 mm. For further information, please kindly contact us.
Recommend grade list of Carbide Plate & Strip:
The grades which used more frequently are YG8, YG15, YG20, YG10.2, YG2T, YG10X etc.Other grades can be offered according to customers' requirements. Afterwards the board can be broken out from the panel.

Grade	ISO Grade	COBALT CONTENT	DENSITY	HARDNESS	TRS
		%	g/cm³	HRA	N/mm²
K10T	K05-K10	4.5-6.0	14.95-15.05	92.7	1800
YG8	K30	8	14.80	89.5	2200
YG6	K20	6	14.95	90.5	1900
YG6X	K10	6	14.95	91.5	1800
YL10.2	K30	10	14.50	91.8	2400
YG13X	K30-K40	13	14.30	89.5	2600
YG15	K40	15	14.00	87.5	2800
YL20.8	K40	15	14.00	88.5	3800

Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
