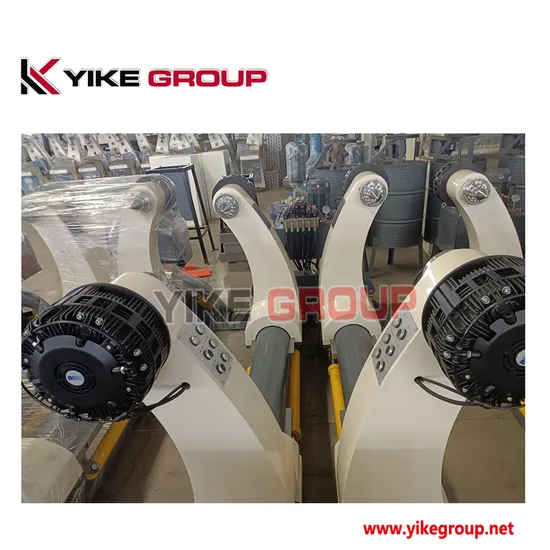

Yike Group Hydraulic Shaft Less Mill Roll Stand Machine Use for 2500mm Corrugated Paperboard Production Line

Product Description

Yike Group Hydraulic Shaft Less Mill Roll Stand Machine Use for 2500mm Corrugated Paperboard Production Line
I,Structural features: 1.Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
2.Brake adjustable adopts multipoint braking system.
3.Each paper rack is equipped with two paper carts that can be served simultaneously from both sides.
II,Technical parameter
1,Paper clip range maximum : 2500mm minimum : 1000mm
2,Folder diameter maximum : 1500mm minimum : 350mm
3,Main shaft diameter of paper holder:¢240mm
4,Gas source work pressure(Mpa):0.4---0.8Mpa
III,Hydraulic system parameters
1,Work pressure(Mpa):16---18Mpa
2,Lifting hydraulic cylinder:¢100×440mm
3,Clamping hydraulic cylinder:¢63×1300m
4,Hydraulic station motor power:3KW --380V -- 50Hz
Solenoid valve voltage:220V 50 Hz

Hydraulic mill roll stand Specification

Symmetrical structure can install two rolls of paper at the same time and continually change paper, paper roller clamp, lift-lower, loosen, movement, contraposition, translation etc.
Equipment was made of HT200-wide casting.
Maximum loading of one side arm 1500-2000kg
Each stand with two set track and trolley for carry paper.
Pneumatic braking
Electrical components are controlled centralized(domestic brank)
One set main motor power of hydraulic mill roll stand is 2kw, each arm power 1.5*4kw
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
Main shaft	Day steel production	diameter242mm
Swing arm	Production by own	Resin sand gray ironHT200
wallboard	Jigang prduction	Q235AWelding parts
bearing	HRB,ZWZ,LYC
expand chuck	Zhejiang xusheng	3,4inch shared
Main electrical appliance	France
button	CHINT NP2series
Air switch	French
Pneumatic components	Zhejiang Sonor CSM
Hydraulic station	Shandong zaozhuang
Brake pump	zhejiang
