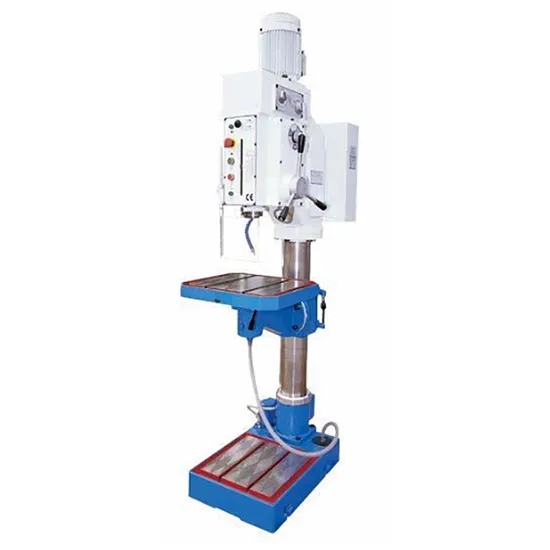

Vertical Drilling Machine Series. Z5035A Z5040A Z5050A
| US$50,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5035A Z5040A Z5050A
Hole Diameter
<50mm
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Woodencase
Specification
920× 550× 2270
Origin
China
Production Capacity
1000pic/Year
Product Description
Product DescriptionTSL250 Horizontal/vertical rotary table QM16160 Precision machine vice A & T-300 Air power drawbar
FW11160A Dividing head Universal machine vice Slotting head
Universal milling head Horizontal rotary table
Product Parameters
| Specifications | Units | Z5035A | Z5040A | Z5050A | |
| Max. drilling dia. | mm | 35 | 40 | 50 | |
| Max. tapping dia. | mm | M20 | M24 | M20 | |
| Distance between spindle axis and column | mm | 330 | 360 | 360 | |
| Max. distance between spindle nose and table | mm | 610 | 600 | 600 | |
| Max. spindle travel | mm | 150 | 180 | 180 | |
| Spindle speed range | rpm | 70-2600(12 steps) | 42-2050(12 steps) | 42- 1865(12 steps) | |
| Table effective working size | mm | 424×424 | 370×500 | 500x370 | |
| Spindle motor power | Kw | 1.5/2.2 | 2.2/2.8 | 2.2/2.8 | |
| Overall dimension | mm | 920×550×2270 | 920×550×2270 | 980x580x2300 | |
| Machine weight | Kg | 670/730 | 740/800 | 800/860 |
Detailed Photos
