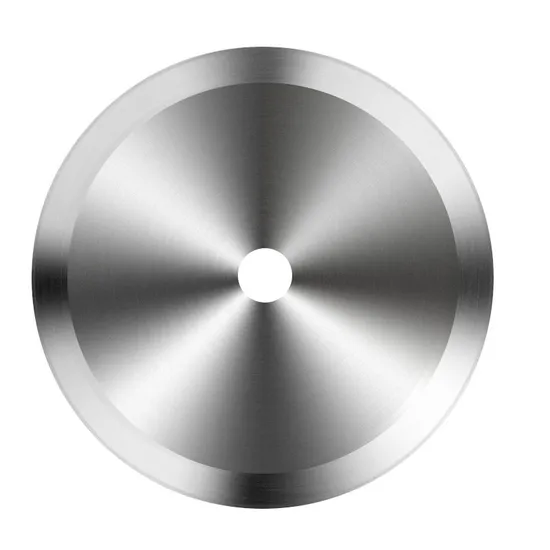

Paper Circular Slitting Blade Tungsten Carbide Insert Round Cutting Knives of Steel Alloy Iron Brass Industrial Machine Shear Blades for Tool Accessories

Product Description

Slitter blade is main used for paper, film, gold, silver foil ,aluminum taps and other items.
Our blade has the least cutting resistance, the largest wear resistance and anti-rust performance.
After cutting the paper roll is free of the rogh edges, scars and black phenomenon.
The cutting tool sometimes have to reach micron precision.
Material: 9Crsi, Cr12MoV, SKD-11, SKH51, ect.
Dimension: Customized

Model No.	Customized	Standard	Customized
Type	Cutting blade	Material	9crsi/Cr12MOV/HSS/Tungsten carbide/customized
Product Name	Circular slitter blade	Application	Industrial process usage
Hardness	HRC 44-68	Surface Treatment	Polishing
OEM & ODM	Acceptable	Package	Paper box/Wooden box
Specification	Customized	HS Code	8208900000
Origin	China	MOQ	50pcs
Sample	Available	Delivery port	Shenzhen

Specification

Size(mm)	OD	ID	Thickness	HRC	Material
Ф61*Ф40*1	Ф61	Ф40	1	55°-62°	9Crsi 6CrW2Si SKD-11 Cr12MoV SKH-51 W18Cr4V HSS Tungsten Carbide
Ф68*Ф40*1	Ф68	Ф40	1	55°-62°
Ф68*Ф46*0.5	Ф68	Ф46	0.5	55°-62°
Ф70*Ф40*1	Ф70	Ф40	1	55°-62°
Ф75*Ф45*1	Ф75	Ф45	1	55°-62°
Ф90*Ф60*1.2	Ф90	Ф60	1.2	55°-62°
Ф100*Ф66*1	Ф100	Ф66	1	55°-62°
Ф100*Ф75*1	Ф100	Ф75	1	55°-62°
Ф105*Ф66*1.2	Ф105	Ф66	1.2	55°-62°
Ф105*Ф70*1.2	Ф105	Ф70	1.2	55°-62°
Ф130*Ф80*1.2	Ф130	Ф80	1.2	55°-62°
Ф130*Ф90*1.2	Ф130	Ф90	1.2	55°-62°
Ф130*Ф100*1.2	Ф130	Ф100	1.2	55°-62°
Ф140*Ф90*1.2	Ф140	Ф90	1.2	55°-62°
Ф150*Ф80*2	Ф150	Ф80	2	55°-62°

Shenzhen Wandaxiang Industry Co., Ltd is a Leading Manufacturer of Custom Industrial Cutting Blades and Machine Knives.
Wandaxiang cutting blades knives are made from material which is high wear resistant and has good tensile strength, combined with the most suitable heat treatment for optimum wear resistance and toughness for a longer life. We can shape and hone our industrial blades precisely through a specialized multi-step process performed by programmable Computer Numerical Control (CNC) machinery. This puts us head and shoulder above many of our competitors. We have the capability to create unusual or unique edge configurations.
In addition to our custom blade manufacturing capabilities, we also offer A Line of slitter blade of paper industrial machine and food industrial machine and Pharmaceutical equipment blades.
We're responsive to our customers' needs and are eager to get creative to fulfill unusual requirements.
Widely used in metallurgy, plastics, food, ceramics, printing, paper, Carton, forestry, rubber, carpentry, textile, electrical appliances, light machinery, molybdenum foil, tobacco, cigarettes, packaging materials, Bopp film, electronics, shipbuilding, chemical fiber, medicinal materials, and other industries
FAQ
Q:Are you a factory or trading conpany?
A:We are a factory with 13 years of professional experience.
Q: Do you have OEN/ODM service?
A: Yes, we have more than 13years ODM/OEM service. We will discuss with our customers all details desi:
according their requirements.
Q.We are a big importer,What is the delivery time if i order large quantity ?
A.We are using automation control products to improve the productivity of machinery ,large quantity is jus
20-25 days to finish.
Q. Do you provide free samples? Is it free or extra?
A. Yes, we can provide free samples, but you need to pay for the freight.
