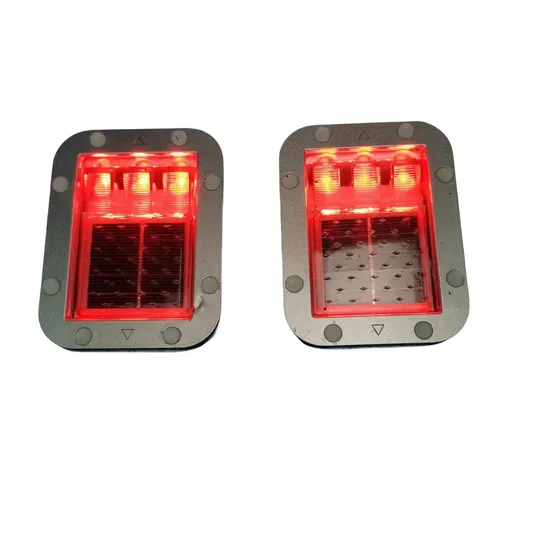

Road/Roadway Safety Aluminum Alloy Square Solar Road Stud/Cat Eye/Pavement Marker, Traffic Sign, Road Sign

US$8.80-10.00 500 Pieces (MOQ)

Basic Info.

Model NO.

qh-14d

Reflectors

LED

Number of Reflective Surfaces

Double-Side

Certification

Transport Package

Carton

Specification

107X83X44mm

Origin

China

HS Code

9405409000

Production Capacity

100000PCS/Year

Product Description

The road stud includes lamp body ,bottom cover ,solar panel ,control panel ,battery and 6pcs led .It is mainly installed on the lane line, which can automatically light up at night to clearly indicate the lane, and can also indicate the direction of the lane to prevent the wrong lane.
How it works:
During the day, the solar panel absorbs sunlight, converts solar energy into electricity, and stores it in the energy storage device (battery or capacitor). At night, the energy in the energy storage device is automatically converted into light energy (controlled by photoelectric switch), and the LED gives off bright light to outline the road and induce the driver's sight.
Solar cell:Mono-crystalline Sillion 2.5V/130mA

Storage Componet:Ni-MH AA 1200mAH battery;or Super Capacitor 120F
Light Source:3pcs of ¢10mm super bright LEDs
Luminosity colors: red, green, blue, white, yellow (for any choice)
Light Mode;Flash type,frequency is adjustable
Work temperature:-40ºC to +70ºC
Material:Alumunuim alloy and PC
Work Time:Over 12hrs after a full sunny day's charge,falsh over 8days if fully charged
Resist compression: 20 tons
Waterproof grade IP>68
Life: >5 years (Ni-Cd) or >10 year ( Super Capacitor)
View distance: over 800m
