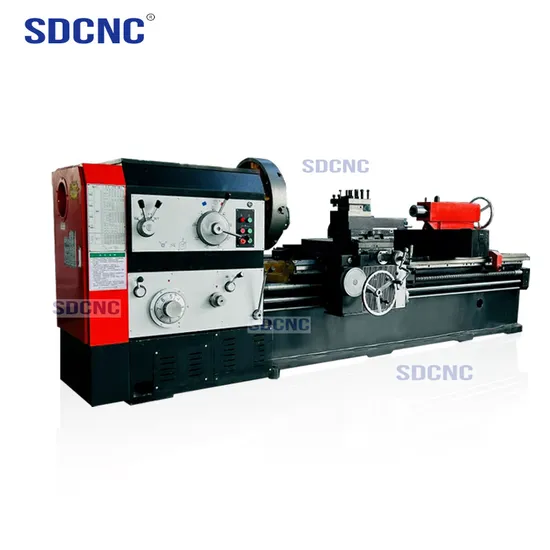

High Precision Horizontal Lathe Machine with High Efficiency and Evaluation

Product Description

Product main features and uses:

1.This machine can undertake a variety of turning work piece, it can turning the various parts of the outer circle,
inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in
addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used
in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
2.The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed
structure, high integral rigidity.
3.The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good
accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable.
In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion
speed control device, the four gear step less speed control, in the original ordinary lathe based on the increase of
the working accuracy, stable and reliable.
4.This machine tool is driven by AC variable frequency speed regulation motor. After sliding gear, I realized that
I, II, III, IV four gear shift frequency conversion speed control, which has good torque characteristics and functional
characteristics, and the sliding plate has the advantages of fast movement and convenient operation
SPECIFICATIONS

ITEM	UNIT	CW6280
Swing over bed	mm	800
Swing oer carriage	mm	520
Maximum length of workpiece	mm	750~10000
Maximum turning length	mm	600~9850
Swing over gap	mm	1000(CW6280B)
Effective width of gap	mm	300(CW6280B)
Pan of guideway	mm	550
Spindle nose		C11
Spindle bore	mm	100
Taper hole of spindle		1:20/120
Ranger of spindle speeds	r/min	6-800
Number of spindle speeds		18
Longitudinal and cross	r/min	64;0.1-24.32
Cross-to-long longitudinal feed rate		1.0/2.0
Screw pitch of leadscrew	mm	12
Number and range of metric thread		50;1-240
Number and range of inch thread	mm	26;14-1
Number and range of module thread		53;0.5-120
Number and range of diametrical pitch thread	mm/min	24;28-1
Rapid traverse speed of carriage		4000
of cross slide	mm	540
of top slide	mm	200
Section of tool shank	mm	32
Diameter of tailstock quill	mm	100
Travel of tailstock quill		250
Taper hole of tailstock quill		Morse5
Main motor power	KW	11
