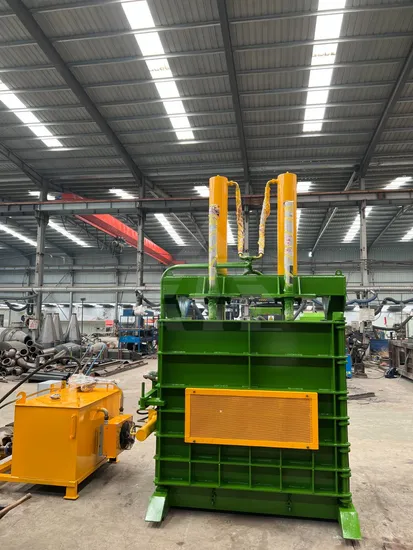

Vertical Hydraulic Clothing Hydraulic Press Baler Machine for Plastic

Product Description

Product Description
1,Vertical hydraulic baling machine is used to compress and pack loose materials.
2,The density of the baling block is high and the overall size is uniform, making it an ideal choice for all kinds of manufacturing factories, material recycling stations and renewable resource recycling companies.
Product Features
1,This type Baler Machine is general purpose, can be used to press and packing a lot of material Science;
2,Machine pressure can be customized, pressure bigger then bale will stronger;
3,Feeding door lifting automatic,lowering the labor density and cycling time;
4,Automatic control model ,more efficiency;
5,Alarming light hint under working state.Instant stopping button with separate installation is obvious to find and safer while operating;
6,Baler Ejection Method: Hanging chain for convenience and rapidness instead of the original cumbersome artificial baler ejection way;
7,Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentric, replacing the common coupling connection and extending pump's using life;
8,Mainly used to packing waste paper/carton/cardboard ,PET bottle,plastic,sponge etc.Mainly used in restaurant ,supermarket,recycle bin,factory etc.
Product Parameters

Model	80	100	120	140	160
Tonnage Pressure	80T	100T	120T	140T	160T
Blade Weight	300kg	450kg	600kg	800kg	1000kg
Feeder	4*80m	4*80m	6*1.2m	6*1.2m	8*1.2m
Filter System	Double Layer Filtration
Power	15kw 2.2kw	15kw 3kw22kw	22kw 3kw	22kw 3kw	30kw 5.5kw*2
Hydro-Cylinder Diameter	200mm	200mm	230mm	245mm	273mm
Feeding port	1.4m	1.4m	1.8m	1.8m	1.8m
Bale size	140*70*70cm	140*110*85cm	140*110*85cm	150*110*85cm	180*110*85cm
Gate lock type	Hydraulic locked
Fetric Control Type	PLC(Auto/Semi/-Auto)

Product Application
Our Advantages
Our Advantage
1,All models are hydraulically driven, and can be controlled manually or automatically by PLC.
2,No foot screw is required for installation, and diesel engine can be used as power in places without power supply.
3,The methods of bag delivery include turning, side pushing, front pushing and manual bag taking.
4,The size of the feeding box and the shape and size of the packing block can be designed and customized according to the specifications of the user's raw materials.
Company Profile
FAQ
Q1: Are you a factory or a trading company?A1: We are a professional manufacturer in China, passed Made In China field certification.Q2: How long is the warranty period?A2: Normally 12 months. Except for wearing parts.Q3: What's your delivery time??A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment. We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
