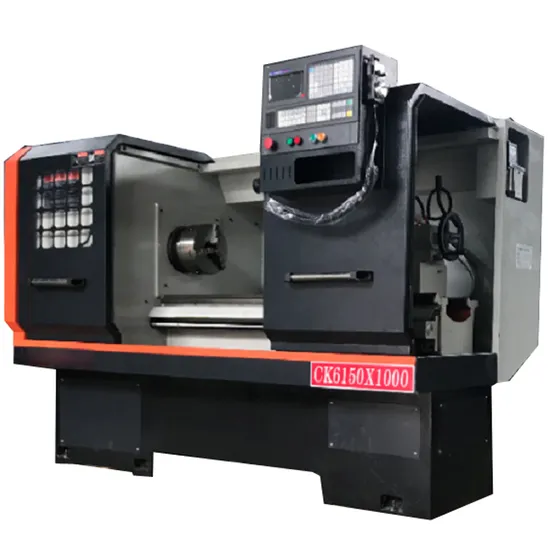

Big Spindle Bore CNC Lathe in Good Price

Product Description

CNC lathe manufacturer CK6150 cnc Lathe Machine Price
Feathers
1. Large-scale production layout
2. Modern workshop configuration
3. Precise detail management
4. Global brand positioning
5. Quality of product promotion

1.frequency conversion stepless speed regulation 2.with servo system 3.four position electric turret 4.standard configuration: spring chuck and chuck double use 5.optional configuration: hydraulic chuck/Row holder

Parameter

Model	CK6150
Max swing over bed	500mm
Max swing over cross slide	280mm
Max processing lenght	750/1000/1500mm
X/Z axis travel	X:300 Z:750/1000/1500
Spindle transmission type	Mechanical three gear speed
Spindle speed step	In gear variable speed
Spindle speed	L :70-560 H:200-1600
Spindle nose	C6
Spindle bore	52/82mm
Spindle taper	MT6
Spindle motor	7.5kw
Chuck size	250mm
Ball screw dia and pitch	2506/4008
X/Z axis feed motor torque	X:5.5Nm Z:7.5Nm
X/Z rapid traverse	X:6mm/min Z:8mm/min
X/Z axis repeatabilty	+/-0.005mm
Processing accuracy	IT6-IT7
Workpiece surface roughness	Ral.6
Tailstock quill dia	75mm
Quill travel	140mm
Quill taper	MT5
Tool post type	4-position electric turret
Cutting tool size	25x25mm
Guide form	One shan one flat
Total power capacity	12KVA
Machine dimension	2500x1500x1690mm
N weight	2000kg

Processing

From drawing design to positive production Upgrading components accuracy from each processing step standardization

Parts must be passed through quality inspection before assembly. 24 hours of destructive testing after assembly.

Details
Provide good details make the cnc lathe good quality
Real Pictures
CNC Lathe machine in workshop
Customer visit us
Packing & Delivery
Export machines with plywood packages
FAQ
Q: How about your machine quality?We are worry about the quality.
A: Shandong Woda Heavy Machinery Co.,Ltd focused on professional production cnc lathe, radial drilling machines and hydraulic press machines for up to 20 years, is China's mature brand. We "quality of survival" management philosophy, has won more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.

Q:How about the service?
A: Shandong Woda Heavy Machinery Co.,Ltd is always provide good service, pre-sale--->in sale-->after sale.
Pre-sale: We have professional sales staff who are familiar with the products and are ready to solve problems for you.
In sale: We have a professional technical team with sales staff to provide you with solutions in real time.
After sale: At present, there is no after-sales problem. Once we encounter after-sales problems, we will promptly solve the problem for our customers. If necessary, we can send people to the past.

Q:Where is your manufactory in China ?
A:Shandong Woda Heavy Machinery Co.,Ltd is located in Tengzhou,Shandong province that is the leading area in China.
Convenient transportation, welcome to your visit.
If have any questions pls feel free to contact me via mobile for convenient +86133463262
