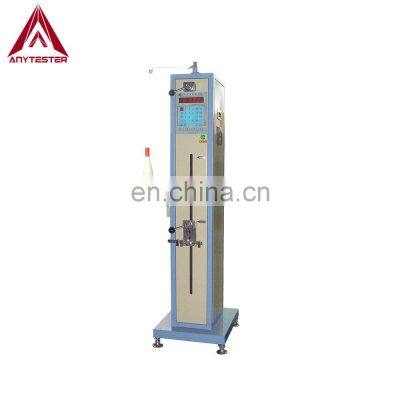

CRE Single Yarn Strength Tester ASTM D2256

Product Description

Product Description
Product DescriptionHY061C Series Single Yarn Strength Tester is used to determine the breaking load and elongation at breaking of single yarns and threads, such as cotton, wool, jute, silk, chemical fibre, etc. This machine conforms to ISO 2062, GB/T3916, etc.StandardASTM D2256ISO 2062BS 1932GB/T3916, 14344DIN 53842.1DIN 53835.2SpecificationModelHY061C-1HY061C-2Test methodCREDisplay modeDigital display on control panelPC displayLoad range3000cN max.5000cN, 12000cNLoad error≤±1% of display value≤±0.5% of display valueGauge length250mm±1mm, 500mm±1mm50~500mm, adjustablePre-tension range1cN~100cNTiming stretching20s±3s, 10s±1.5sTest speed250mm/min±2%, 500mm/min±2%50~500mm/min±1%, adjustableTest times2~100 times settableLinear density1~599.9tex settablePower supplyAC220V±10%, 50HzDimensions320mm×360mm×1160mm550mm×350mm×1080mmWeight36kg40kgDetails★ Microcomputer control, automatic data processing, display and printout ★ Reliable, accurate, stable and high efficiency ★ Automatically save data while power down ★ Easy and fast to operate, each group of tests can take not more than 10mins★ Can display date and time, also can print out★ Rate of AD converter is 25us/times★ With imported integrated circuit chips★ Less machine connector, without relays, good reliability★ Digital display test data on control panel or PC;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
