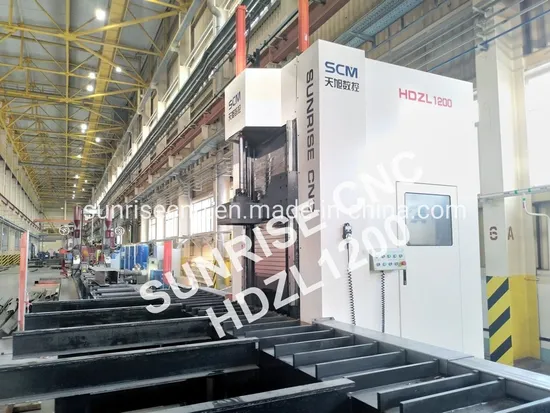

Hdzl Series High Speed Single Spindle Beam Drilling Machine
| US$120,000.00-150,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HDZL600/1200
Controlling Mode
CNC
Number of Shaft
2
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, ISO 9001
Condition
New
Transport Package
Plywood Case
Specification
14000*3000*2500mm
Trademark
SUNRISE
Origin
China
HS Code
8459210000
Production Capacity
50 Sets/Year
Product Description
Applicable industry:Used for the drilling processing of H-shape steel, box beam, angle steel and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
Product feature: CNC systems, LCD screen display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
2. Main machine, hydraulic pressure, electric components are famous products domestic and abroad. Equipped with automatic feeding system Double linear guides' infeeding, precision much higher and more stable.
Specifications:
| Model | HDZL600 |
| The process workpiece size, mm | 600x600 |
| Max. Length of work piece, m | 14 |
| Max. Drilling thickness, mm | 100 |
| Taper hole of spindle | BT40 |
| Motor power of spindle, kw | 15 |
| Drilling speed, rpm | 30-3000 |
| Feeding mode of spindle, mm/min | 0-4000 |
| Max. Feeding stroke, mm | 300 |
| Max. Drilling diameter, mm | Carbide drill φ30 High speed steel twist drill φ40 |
| Quantity of axis | 3 |
| X axis Servo motor, kw | 4.4 |
| X axis Feeding speed, m/min | 40 |
| X axis drive mode | Adopt linear guide + rack drive |
| Y axis Servo motor ,kw | 2 |
| Y axis Feeding speed, m/min | 8 |
| Yaxis drive mode | Adopt linear guide+ball screw drive |
| Z axis Servo motor ,kw | 2 |
| Z axis Feeding speed, m/min | 8 |
| Z axis drive mode | Adopt linear guide+ball screw drive |
| Type of ATC (Automatic tool changer) | Inline style with 6 tools (Optional) |
| Quantity of tooling | 6 |
| Power supply, V | 380V |
| CNC system | SIEMENS CNC 808D |
| Weight , t | About 18 |
| Overall size, mm | About 16000 x 4000 x 3600 |
HDZL600 Main components list:
| No. | Name | Manufacturer |
| The main electrical components: | ||
| 1 | CNC 808D | German Siemens |
| 2 | Servo motor | Japan YASKAWA |
| 3 | Servo driver | |
| 4 | Spindle servo motor and driver | BEIJING CTB |
| 5 | Push button | German SIEMENS |
| 7 | Indicators | German SIEMENS |
| 8 | Contactor | German SIEMENS |
| 9 | Power supply | China Aerospace Power |
| 10 | Photoelectric switch | AUTONICS |
| 11 | Proximity Switch | AUTONICS |
| 12 | Computer | Lenovo |
| The main hydraulic components: | ||
| 1 | Hydraulic valves | Italy ATOS |
| The main mechanical components: | ||
| 1 | Linear slide | Taiwan HIWIN |
| 2 | Ball screw | Taiwan HIWIN |
HDZL600 Spare parts list for one year work:
| No. | Name | Model | Qty. | Remark |
| 1 | Proximity Switch | 5 | AUTONICS | |
| 2 | Drill handle | BT40 | 1 | |
| 3 | Drill pole | 30 | 2 | |
| 4 | Blade | 4 | ||
| 5 | Drill handle | #4 | 2 | |
| 6 | Drills | 40 | 1 for each | |
| 7 | Inner hexagon spanner | 1 set | ||
| 8 | Adjustable spanner | 1 | ||
| 9 | Spanner 17-19 | 1 | ||
| 10 | Spanner for quick change drill | 1 | ||
| 11 | Standby paint | 2 pails | ||
| 12 | Operation manual | 2 sets | ||
