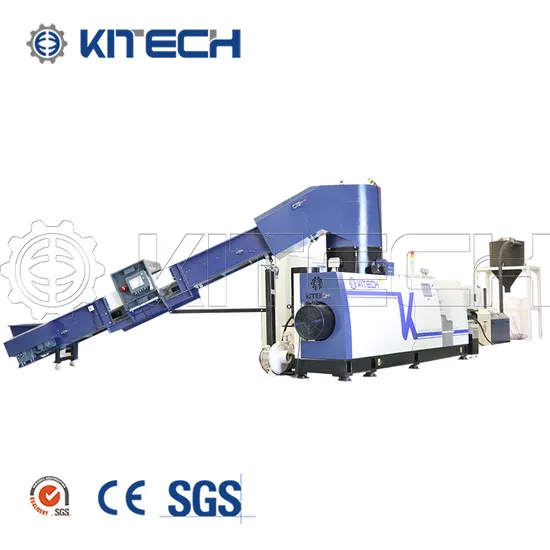

Three in One Recycling Granules Machine Waste Plastic PP PE Pelletizing Line

Product Description

KCP series compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film,raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic.Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, EPS, ABS, PA,PLA, PET waste plastic materials recycling field.
Recycling Material of KCP Plastic Recycling Machine:

Material	PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS etc.
Shape	Film, Bag, Woven bag, Raffia,Bubble film, Foam, nonwoven fabric, Filament,sheet,chips
Type	Loose, Bundle, Roll, Scrap
Origin	Off cut, Washed film, In house waste, Regrind

Working principle of KCP Plastic recycling Machine:
Basic data of KCP Plastic recycling Machine:

Technology Parameter
Type		KCP80	KCP100	KCP120	KCP140	KCP160	KCP180
Capacity (kg/h)		150-250	300-420	400-600	600-750	800-950	1000-1200
Energy consumption (kWh/kg)		0.2-0.33	0.2-0.33	0.2-0.33	0.2-0.33	0.2-0.33	0.2-0.33
A / Length (mm)		10,300	10,300	11,400	11,400	14,800	14,800
B / Width (mm)		6,200	6,200	6,450	6,450	6,850	6,850
C / Height (mm)		3,500	3,750	3,980	4,250	4,460	4,850
Compactor	Volume(L)	300	500	800	1000	1200	1400
	Motor power(KW)	37-45	55-75	75-90	90-132	132-160	160-185
Extruder	Screw Diameter (mm)	φ80	φ100	φ120	φ140	φ160	φ180
	L/D	30-40	30-40	30-40	30-40	30-40	30-40
	Motor power (kW)	55-75	90-110	132-160	160-200	250-315	315-355
Filter (options)	Two position plate type	Standard	Standard	Standard	Standard	Standard	Standard
	Two position piston type	Alternative	Alternative	Alternative	Alternative	Alternative	Alternative
	Back flush piston type	Alternative	Alternative	Alternative	Alternative	Alternative	Alternative
	Automatic self-cleaning type	Alternative	Alternative	Alternative	Alternative	Alternative	Alternative
2nd Extruder (optional)	Screw Diameter (mm)	φ100	φ120	φ140	φ160	φ180	φ200
	L/D	10-18	10-18	10-18	10-18	10-18	10-18
	Motor power (kW)	37-45	45-55	55-75	75-90	90-110	110-160
Downstream (options)	Water ring pelletizer	Standard	Standard	Standard	Standard	Standard	Standard
	Strand pelletizer	Standard	Standard	Standard	Standard	Standard	Standard
	Auto strand pelletizer	Standard	Standard	Standard	Standard	Standard	Standard
	Underwater pelletizer	Standard	Standard	Standard	Standard	Standard	Standard

Specifications of KCP Plastic Recycling Machine:
*Feeding materials into compacting room by conveyor automaticlly.
*Speed possible controlled by inverter
*Metal detector optional
*Rotator and stationary blades are combined to cut up the materials,
*Crushes, dries and compacts the material in one step,
*Guide structure directs the material into extruder screw.
*A specialized single screw extruder applied to gently melt the pre-compacted material.
*The plastic scraps will be well melted, plasticized in the extruder.
*With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.
*Single Screw extruder melts the material,
*Double-zone vacuum degassing system,
*Self protective system,
*A single-plate double-station screen changer or double-plate four-station installed on head of extruder filtrates the melt.
*Build in hydraulic control.
*Die-face water ring pelletizing system is a standard pelletizing method,
*Self-adjusting pelletizing,
*RPM of rotator blades is automatic based on melt extruding pressure,
*Dewatering vibration sieve combining with horizontal-type centrifugal dewatering have a good drying efficiency.
*PLC/HMI Controlling system,
*All electrical units mounted in a steel cabinet,
*All heaters equip with Ammeters,
*Safety interlock principle applied in the system,
*All electrical units: LS, Siemens and ABB.
Advantages of Our KCP Plastic Recycling Machine:
*Ability:
KITECH pelletizing system with superior quality which have high productivity for PP/PE/PS/ABS/BOPP/CPP plastic could get high property output pellets.
*Stability:
The pelletizing system is available for 24 hours working non-stop operation.
*Efficiency:
The pelletizing system have very low consumption values for electricity, water and labor.
*Control:
Intelligent automatic control of pelletizing system reduces the labor operation, makes the whole system easier and more reliable to control.
*Service:
Consistently quick and careful service in pre-sales and after-sales process. Overseas installation, commissioning and training are available.
Service and support:
*Before-sale:
Introduce products professional
Project engineering
*During manufacturing:
Provide layout and engineering conditions
Inform the schedule of production
Make sure the product designed in accordance with technical document
Test machine before delivery
Provide photos before shipping
*After-sale:
Build customers database. All machines are traceable.
Overseas installation, commissioning and training are available
Speed up service and spare parts supply.
Visit customers and make quality trace periodically
