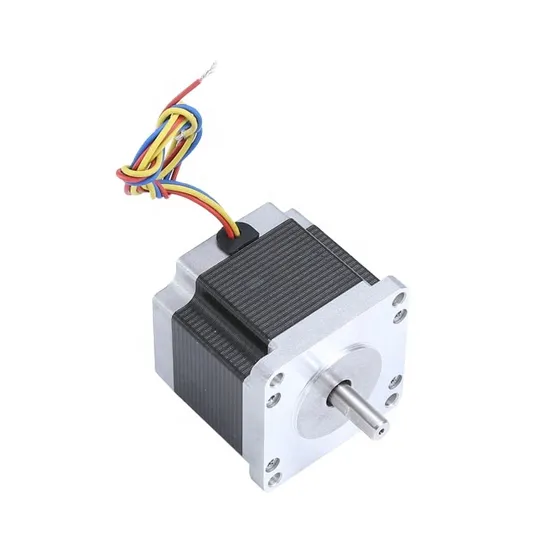

Stepping Motors of 57 Series
| US$5.00-95.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
57 series
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control, Driving
Number of Poles
4
Operate Mode
The Three Single Phase
Type
Hybrid
Certification
ISO9001, CE
Brand
Mige
Phase
2
Warranty
3months-1year
Current / Phase
2/3(a)
Transport Package
Packed in Carton or Plywood Case.
Specification
57mm
Trademark
MIGE
Origin
Zhejiang, China
HS Code
85013100
Production Capacity
50000 Case/Cases Per Month
Packaging & Delivery
Package Size
20.00cm * 16.00cm * 14.00cm
Package Gross Weight
1.500kg
Product Description
Stepping motors of 57 series specifications| Model | Step Angel(°) | Length(mm) | Holding torque(N.m) | Current(A) | Resistance(Ω) | Inductance(mH) | Rotor inertia(g.cm²) | Weight(kg) | Shaft diameter(mm) |
| F57-H41 | 1.8 | 41 | 0.39 | 2.0 | 1.4 | 1.4 | 120 | 0.45 | 6.35 |
| F57-H51 | 51 | 0.72 | 3.0 | 0.74 | 0.9 | 275 | 0.65 | 6.35 | |
| F57-H56 | 56 | 0.90 | 3.0 | 0.75 | 1.1 | 300 | 0.7 | 6.35 | |
| F57-H76 | 76 | 1.35 | 3.0 | 1.0 | 1.6 | 480 | 1.0 | 6.35 |
