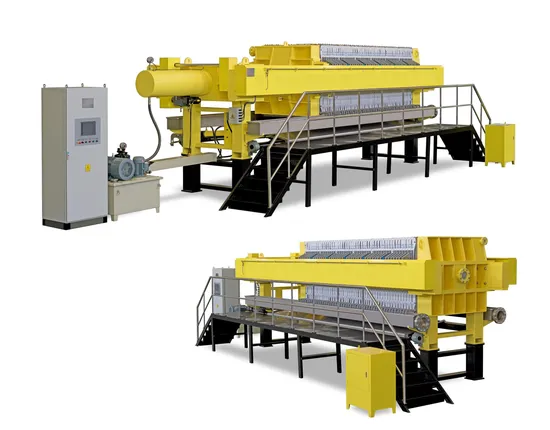

Leabon Automatic Frame Pressing Filter Cloth Washing Membrane Hydraulic Filter Press Price

Product Description

Leabon Automatic Frame Pressing Filter Cloth Washing Membrane Hydraulic Filter Press Price Product Description Introduction of filter press:1. wholly Automatic program-controlled. It can be working unattendedly.2.Adopt upper washing device, with few actions and synchronous with auto plate shifting machine. The washing cycles can be set according to requirements(can be regulated on site)3. We have a production line for manufacturing filtration cloth in order that we can offer customers with all kinds of clothes. our company also equipped with testing facility that can perform the filtration testing for customers free of charge in order that we can select the most suitable filtration cloth for customers.4. Automatic drip tray open&close.
Product Parameters

Specification	Filter area(M2)	Filter plate size(mm)	Filter plate thickness (mm)	Filter volume (M3)	Filter plate NO. (pcs)	filter chamber press (Mpa)	Motor power (KW)	Weight (Kg)	External dimension (L×W×H)(mm)
XAMG30/870-30UBK	30	870x870	30	0.460	23	0.6	2.2	2680	3120×1390×1700
XAMG40/870-30UBK	40			0.595	29			3050	3510×1390×1700
XAMG50/870-30UBK	50			0.748	37			3465	4150×1390×1700
XAMG60/870-30UBK	60			0.902	45			4003	4730×1390×1700
XAMG70/870-30UBK	70			1.056	53			4584	5440×1390×1700
XAMG80/870-30UBK	80			1.210	61			5082	5760×1390×1700
XAMG50/1000-30UBK	50	1000 × 1000	30	0.752	27	0.6	4.0	4352	4430×1500×1800
XAMG60/1000-30UBK	60			0.908	33			4808	4890×1500×1800
XAMG70/1000-30UBK	70			1.063	39			5263	5350×1500×1800
XAMG80/1000-30UBK	80			1.219	45			5719	5800×1500×1800
XAMG100/1000-30UBK	100			1.505	57			6555	6710×1500×1800
XAMG120/1000-30UBK	120			1.816	69			7466	7466×1500×1800

Manufacture Parameter of Automatic Cloth Washing Membrane Hydraulic Filter Press Price
Filter Plate for Automatic Cloth Washing Membrane Hydraulic Filter Press Price
FAQ for filter press:
1.What's your treating slurry?
2.What's treating capacity of slurry?
3.What's the solid content in the slurry?
4.what is the demanded moisture in filter cake after filtration?
5. whether you need one complete filtration program, including pumping equipment, squeezing equipment, cloth-washing device, cake conveying device, filtrate collecting device, etc ?
After we got your confirmation, we can provide one complete filtration program for your reference.
