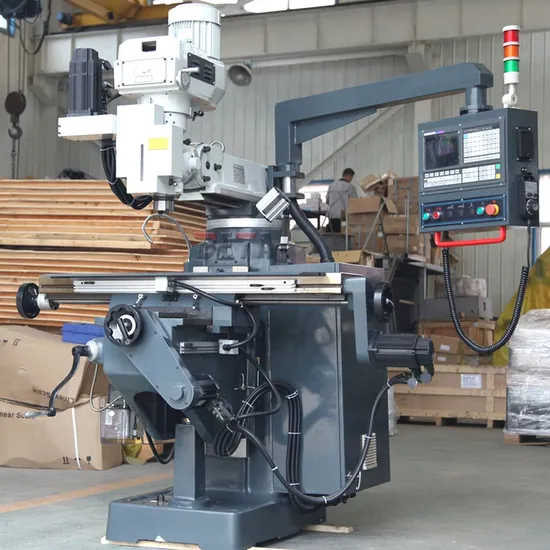

Economical Vertical Step Milling Head Xk6330 GSK CNC Milling Machine for Metal
Basic Info.
Model NO.
XK6330
Type
CNC Milling Machine
Object
Metal
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Vertical Step Milling Head GSK CNC Milling Machine
X/Y/Z Axis Travel
800/360/103mm
Worktable Size
305X1370 mm
Motor Power
3.7 Kw
Weight (Kg)
1800 Kg
Table Travel (Y) (mm)
360mm
Spindle Taper
Nt40
Delivery Time
One Month
Voltage
Customized
Range of Spindle Speed(r.p.m)
66-4540
Max. Table Load(Kg)
350 Kg
Transport Package
Wooden Case
Specification
305x1370mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 225.00cm
Package Gross Weight
1800.000kg
Product Description
Economical vertical step milling head XK6330 GSK CNC milling machine for metal
| Model | Unit | XK6325 | XK6330 | |
| Table size | mm | 254×1370 | 305×1370 | |
| T slots | n*mm | 3×16 | 3×16 | |
| Table loading | kg | 280 | 350 | |
| X axis(table longitudinal move)travel | mm | 750 | 800 | |
| 850 | 900 | |||
| Y axis(table cross move)travel | mm | 400 | 360 | |
| Z axis(Quill move)travel | mm | 103 | 103 | |
| X/Y/Z axis servo motor | kw | 1 | 1 | |
| Knee vertical travel | mm | 400 | 380 | |
| Ram travel | mm | 470 | 500 | |
| Distance from spindle to table | mm | 0-400 | 0-380 | |
| Spindle speed | Atandard:16 steps | rpm | 50HZ:66-4540 60HZ:80-5440 | 50HZ:66-4540 60HZ:80-5440 |
| Optional:Variable | 60-4200 | 60-3600 | ||
| Spindle taper | Standard:R8/Optional:NT40 | NT40 | ||
| Motor power | HP | 3 | 5 | |
| Head rotating | Swiveling | degree | 90° | 90° |
| Tilting | 45° | 45° | ||
| CNC controller | GSK/Siemens | GSK/Siemens | ||
| Packing size | mm | 1900×2000×2230 | 2000×2000×2250 | |
| G.W | kg | 1400 | 1800 | |
Features:
1.Cast-iron with wide, hardened, plastic-coated rectangular guide ways
2.Powerful main motor with electronic control and shifted gears ensure high torque and wide speed range
3.Cutter head swivel to both sides
4.Automatic central lubrication
5.Mini and economical style, with lower price and widely using
6.Milling head from Taiwan
7.Bearing from NACHI
8.Ball lead screw from Chinese famous brand
9.3-Axis servo motor and 3-axis rapid feed
10.Variable speed milling head for your choice as optional accessories.
