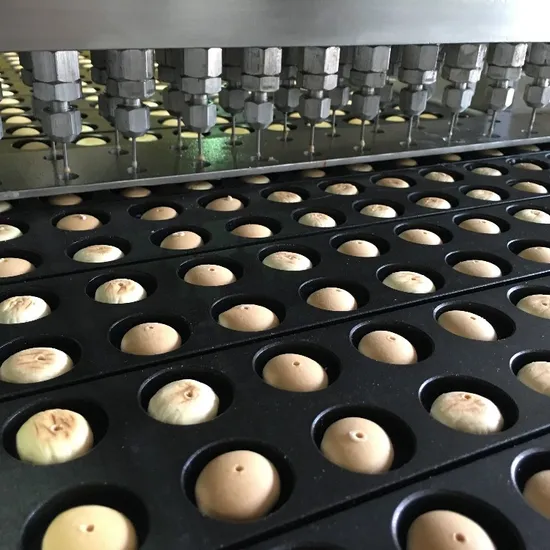

2021 Chocolate Injected Biscuit Production Line Biscuit Making Machine

Product Description

China Automatic Full Soft Biscuit Production Line Cookie Making Machine Product Biscuit
1. Skywin Model 400/600/800/1000/1200/1500 mm, capacity from 100-1500 kg/hr.2. It is widely available for making all kinds of biscuits( Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Potato chips, hello panda biscuit, Print biscuit and Chocolate filling biscuit)3. Guarantee for 1 year along with recommended spare parts for 1 year.4. Different shape biscuit just need to change the mold, we also can design mold for you according to your requirement.
Product features:
1. Chinese famous brand motor & gearbox
2. SKF bearing
3. SMC Penumatic cylinder for belt tension and deflecting adjustment
4. PU and Cotton belt
5. 304 Stainless steel cover, thickness 1.5-2.0mm
6. SIEMENS transducer electric and PLC touch screen control.
7. Guarantee for 1 year along with recommended spare parts for 1 year.

1. Horizontal Dough Mixer	6. Seperator
2. Pre-sheeter	7.Enter Stove Machine
3. Laminator(Necessary machine for Soda Cracker & Hello Panda Biscuit)	8.Tunnel Oven
4. Gauge Roller	9.Out stove & Peeling Machine
5. Rotary Cutter/Rotary Moulder(Biscuit forming machine)	10.STACKER

1.Dough Mixer (150KG/250KG/300KG/500KG/750KG for option)The equipment is used for dough mixing.after the kneading,rolling and folding process,Dough has a smooth surface with good elasticity,toughness and extensibility.Special for hard and soft biscuit dough, Twin direction spiral mixing Steel blade√ #304 stainless mixing blade
√ Blade are polished and can rotate 360 degrees
√ Blade can rotate clockwise and counterclockwise, make the mixing more uniform
√ Electric/Hydraulic pressure tipping,Frequency speed control 0-60 round per minute
2.Dough Sheeting MachineThree rolls Pre Sheeter:
Three-roll sheeter will press the dough twice and make the dough sheet go through the other equipment.
√ Dough thickness can be adjusted, digital display sheet thickness
√ Dough thickness: 5~20mm
√ Wallboard thickness 30mm
Laminator:This machine is special for Hello Panda & Soda Cracker and need laminating dough√ Increase the layers to the biscuits and make the biscuits flavorful.
√ Laminator layer:8-16 layersGauge Roller:
It is necessary for Hard Biscuit
√ Press dough sheet until require, eliminate the stress of dough sheet.
3.Rotary CutterRotary Cutter for Hard Biscuit and Cracker Biscuit.√ Food grade endless canvas belt, canvas belt:add water pneumatically
√ Quick mould changing device,10-15 mins change mould
4.Rotary MoulderRotary Moulder For soft biscuit
√ The position of the scraper can be adjusted according to the size and thickness of the biscuit
√ Our scraper has patent protect from government
√ High accuracy, saving raw materials
√ With memory function, recipes can be stored
5.Tunnel Baking OvenThis machine is to bake the biscuit and cookie with good shape and nice taste
√ Gas and electric and diesel oil for option
√ 100kg-2tons per hour,oven length form 10m-90m for different capacity
√ High efficiency, Rapid heating,Save energy, Clean and Simple operation
√ Hot wind circulation for color biscuit and good taste
√ It has Auto alarm and safety device
6.Cooling Conveyor and Stacker MachineCooling Conveyor:
Cooling conveyor is used for biscuit cooling naturally after bake,with Pneumatic tension device and belt automatic aligning system.
Stacker Machine:
Stacker is used for stacking biscuit,use star wheel and discrepancy device enable the biscuit coming into rows and transport to packaging table for pack.
7.Packing MachineMainly used for packing biscuits, cookies, egg yolk pie, bread, moon cakes, candies, daily necessities etc.
√ Packing Speed:250-300bags/min
√ Double frequency conversion control, bag length can be set and cut in one step, save time and film.
√ Packaging film material: OPP/PE/PVC/CPP/PTPE/KOP/Aluminum film, ect.

Product name	Automatic biscuit making machine
Capacity	100-1500 kg/h can be made, it is according to the oven length.
Oven Type	We can provide Gas oven/ Electric Oven/ Diesel Oven.
Material	Full #304 stainless steel. Other material can be customized according to your requirement.
Motor/Gearbox	SEW Motor/Chinese famous Brand Motor for option
Control	PLC Touch Screen Control
Cylinder	Air TAC
Transducer	SIEMENS
Bearing	NSK

Model	Length of oven	Output capacity
400mm working width	16-40m	50-300kgs
600mm working width	50m	500-620kgs
800mm working width	50-60m	750-1000kgs
1000mm working width	50-60m	850-1200kgs
1200mm working width	65m	1200-1500kgs

Company profile:
Skywin Foodstuff Machinery Co., Ltd established in 2000, and it is a manufacturer which specialized in the fully automatic high quality Biscuit Production Line.
We provide One-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing,also we have resolved the biscuit sandwiching machines automatic connect the packaging machines and biscuit line to connect packaging machines, all operation is full automatic PLC controlled.We will supply professional consulting services for machines used within the industry of biscuit production, as well as the most suitable design proposals and qualified machines.
Our regular packaging is multilayer packing, safe transport, shipping by sea:Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).If any special requirements, we will pack it as requested.
FAQ 1.Q:Are you manufacturer?
A: Yes, we are factory specialized in Biscuit Making Machine, and have group of 30 years experienced engineers, advanced processing equipment.
2.Q: Why choose us?
A:--- We are China leading snack food machinery supplier.
--- Best quality & best service with competitive price.
--- Engineers available to service machinery overseas.
--- Machine has One year warranty and whole life after sales service.
--- Training how to install and use the machine.
--- Energy saving and manpower saving help you cost less.
3.Q: Is there a variety of language options for your operating system?
A: We use PLC controller system, it has Russian, English, Chinese, Korean, Arabic and other languages.
4.Q:How long is your biscuit line?
A:we can design the biscuit line according to the layout of your workshop.
5.Q: How can we make sure about the machine quality after we put the order?
A:Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in the third party inspection organization .
We will provide the basic cookie recipe !!!!
