Excavator Mounted Rock Hydraulic Drilling Attachement China Manufacturer

Product Description

Top Quality Excavator Mounted Pd-Y45

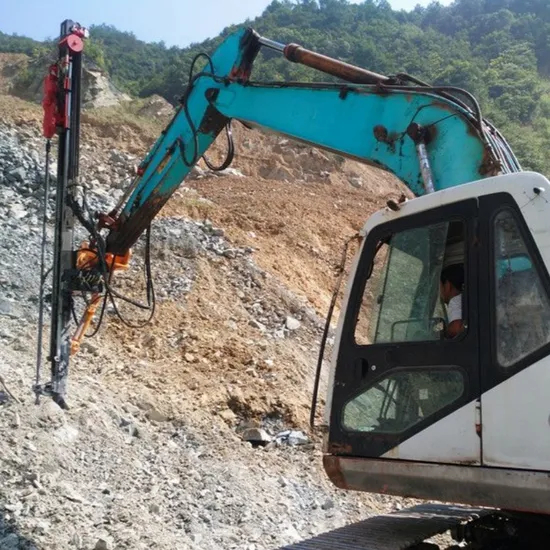

Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concretre demolition, construction works, etc. ProDrill rock drills' percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator's boom.
Besides demanding conditions, ProDrill Excavator Drill can also be used as hydraulic rock splitter to demolish over sized rock bad and huge concrete building removal.
1. Excavator Mounted Drill Rig
1 meter per Min
Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concretre demolition, construction works, etc. ProDrill rock drills' percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator's boom.
A. QL-Y90 EXCAVATOR MOUNTED HYDRAULIC DRILL RIG
FOCUS ON BIG HOLE
Product Description
2-3/, .
QL-Y90, 38-89mm, , QL-Y90.
Drilling speed can up to 2-3 meters per minute, but don"t need a big compressor.
The drill hole diameter of QL-Y90 excavator mounted hydraulic drill rigrange from 38 to 89 mm, it is the best choice for the big hole.
B. QL-Y45 EXCAVATOR MOUNTED
HYDRAULIC DRILL

Product model	WG-45A	WG-45B	WG-45C
Rock hardness	f=6-18
Drilling depth	3200m
Weight	1200kg
Hydraulic Drifter	YHD5	HYD200	HC20
Manufactor	YONDA	LHS	MONTABERT
Origin	China	China	France
Impact power/KW	7	7	4.5
Impact Frequency/HZ	50	34-67	50
Water flushing flow /L/min	30
Water flushing Pressure /MPa	1-1.5	1.0	1.5
Air flushing/m³/min	3.0
Air flushing pressure/bar	6-10
Rod type	R25/R32/R28
Drilling Diameter /mm	32-54	32-64	32-51
Excavator	≥8
