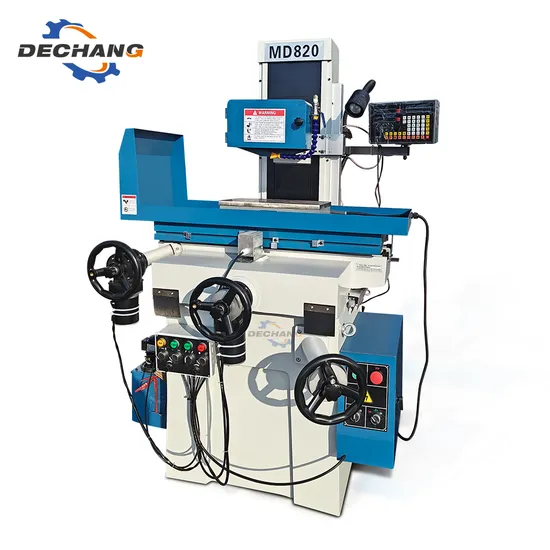

Metal Precision Plane Polishing Grinding MD820 Auto-Feed Electric Surface Grinder Machine

Product Description

Metal Precision Plane Polishing Grinding MD820 Auto-Feed Electric Surface Grinder Machine
Product Description
Features:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.
3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.
4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed, according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Technical specifications:

Specifications							Units	MD820
workbench		Worktable size (L * W)					mm	480x200
		Max. travel of table					mm	530x220
		Table T slot (slot number x slot width)					mm	1x14
Grinding head		The grinding wheel size (o. d * w * i. d.)					mm	φ200x20xΦ31.75
		Distance spindle center line to working table					mm	440
		Grinding wheel speed				50HZ	r/min	2850
						60HZ	r/min	3440
The amount of feed		Table longitudinal (left and right) speed					m/min	3-20
		Transverse (front and rear) feed handwheel feed			Continuous (stepless)		mm/min	300
					Intermittent (stepless)		mm/min	0-5
					Handwheel per turn		mm	2.5
					Handwheel per lattice		mm	0.02
		The vertical (up and down) feed handwheel feed				Handwheel per turn	mm	1.25
						Handwheel per lattice	mm	0.01
Reversing feeder X- feeder output speed		Total input power					W	150
		X- feeder output speed					r/min	0-225
		X- feeder size					mm	280x130x120
		Y- feeder output speed					r/min	0-120
		Y- feeder size					mm	280x130x120
Motor power			Spindle motor				kw	1.1
			Cooling motor				W	40
working accuracy	The process surface of the base level of the parallel degree						mm	300:0.005
	Surface roughness						μm	Ra0.32
Machine weight				Net weight			kg	767
				Gross weight			kg	867
External size (L * w * h)							mm	1680x1140x1760
Packing size (L * w * h)							mm	1140x1250x1940

Detailed Photos
