Heavy Duty Hsgj Multi Cutter for India

Product Description

Product Description
QSQ-2200/2500/3000

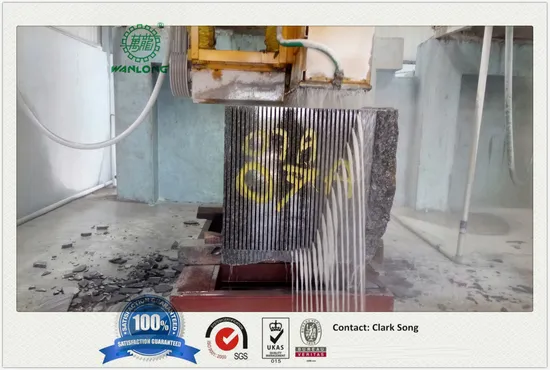

QSQ-2200/2500/3000 combines different diameters of blades working simultaneously as multiblade cutting. It has screw rod lifting system and hydraulic lifting system for your choice. Heavy duty structure, logical control system together with "Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
It is also flexible in modification for single blade cutting.
Technical Parameters

Model	Unit	QSQ-2200	QSQ-2500	QSQ-3000
Max. diameter of blades	mm	φ2200	φ2500	φ3000
Max. No. of blades	pcs	9-12	9	5
Recommended Thickness of Blade	mm	5.5/6.5	5.5/6.5	6.5/7.2
Main motor power	KW	45/55	45/55	65
Max. Cutting Size(L x W x H)	mm	3200 x 1800 x 950	3000 x 1800 x 1100	3500 x 1800 x 1350
Overall dimensions(L x W x H)	mm	8000 x 4000 x 5500	8000 x 4000 x 5500	8500 x 4000 x 6100
Approximate weight	Kg	12000	12000	17000

Features
High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Encoder for X, Y, Z movement.
4. Strong cast iron HT200.
5. Double V-shape guide rails enhance the smooth cutting and movement.
6. Touch sensitive Panel Easy for worker to operate.
7. Locking system on vertical beam to protect the machine collaption.
8. Fast hydraulic lifting system.
CONTACT
Wanlong Group
We are a leading stone machinery and diamond toolds manufacturer and exporter with a monthly turnover of 5 million US dollars. Our products are rigorously tested not only in our own laboratory to ensure the best performance, but also proved by our 2100 clients from 108 countries.
Our Diamond tools and stone machinery are available for all types of natural stones, including granite, marble, limestone, sandstone, travertine, etc.
Diamond tools:Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 10 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).
Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 18 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.
For more information, pls contact with us or visit our website: wanlonggroup.en.made-in-china.com .
